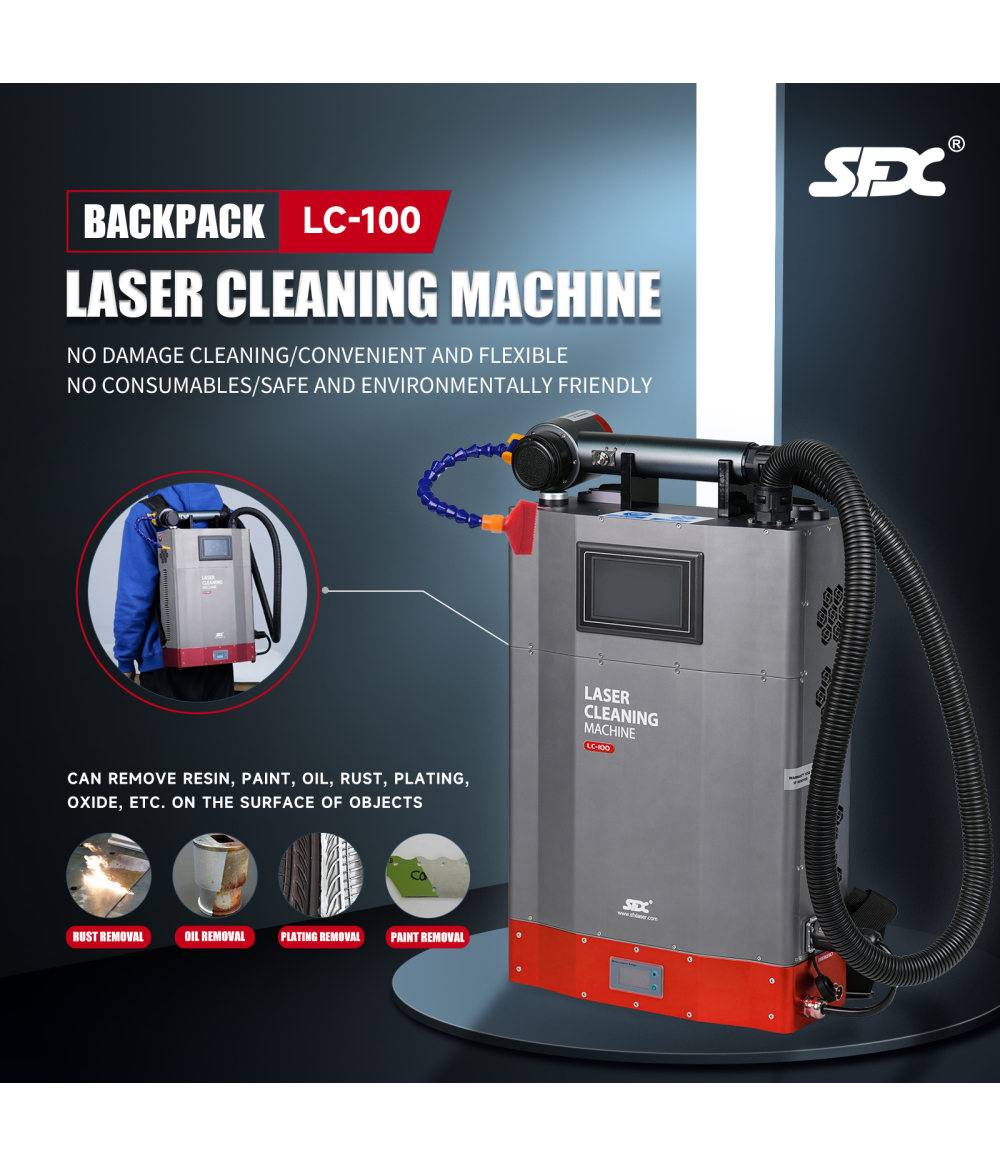

100W Backpack Pulse Fiber Laser Cleaning Machine Metal Rust Paint Oxide Coating Removal Machine
Backpack FLC-100 Laser Cleaning Machine, No damage precision cleaning, Convenient and Flexible, No consumables, Can remove resin, paint, oil, rust, plating, oxide, ect on the surface of objects. Battery Removable.
- Product Code:FLC-100
- Availability: In Stock
- Product Size:0.34 x 0.13 x 0.54 m
- Weight:15 kg
In Stock 100
- Model: FLC-100
- Power supply: Lithium battery design(optional), Fully charged can sustainably work for 1 hour
- Power consumption: <500W
- Working environment temperature/humidity: 5°C-40°C ≤80%
- Laser working mode/cooling mode: Pulsed Air cooling
- Average output power: ≥100W
- Power instability: <2%
- Pulse width/Max single pulse energy: 10-500ns Adjustable 1.2mJ
- Beam quality(M2): <2.0
- Power regulation range(%): 10-100(Gradient adjustable)
- Repetition Rate(kHz): 1-3000(Gradient adjustable)
- Fiber length: 1.5m
- Scanning range: 0-100mm, continuously adjustable; Dual axis supports 8 kinds of scan modes
- Scan frequency: 10Hz-300Hz continuously adjustable
- Field mirror focal length: 160mm(Optional 210mm/254mm/330mm/420mm)
- Depth of focus: approx. 5mm
- Overall size: 336*129*540mm
- Total weight: 16kg (including battery)
- Cleaning head weight: <0.75kg
- Operation mode: Handheld
Features and Advantages:
- Portable Backpack Design. Ergonomic, time-saving and labor-saving. Stable laser cleaning system. Long service life.
- Light weight, compact structure. Total weight about 16kg, cleaning head is only 750g, convenient to hold, quick to clean.
- Optional mobile battery module. No limit to space and location, free to move anywhere you want. Very suitable for outside cleaning job.
- Pulse type high-precision cleaning. Light shapes can be set, achieve selective cleaning for precise position and size.
- Blowing protection device reducing lens damage. Non-contact cleaning, eco-friendly, no consumables, no damage to the surface of parts.
- 9 Language modes. Simple and safe operation, plug and work, 8 meters power cable.
- 8 Kinds of cleaning modes (straight line mode, 2 rectangular modes, circular mode, sine mode, double helix mode, free mode, ring mode)
- Harsh tests, reliable quality. (high contamination, anti-interference, vibration, high temperature, continuous working, fatigue, dustproof, high humidity test)
Application and warranty:
- Applicable industries: Shipbuilding, auto parts, rubber molds, high-end machine tools, rail transit, environmental protection
- One year warranty for the whole machine, two years warranty for the laser source.
- Free Shipping to door by DHL/UPS/Fedex About 5-10 Days, No Import Duty for American Customers.
- After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Lifetime Online Technical Support.
|Average output power||≥100W|
|Cleaning head weight||<0.75kg|
|Depth of focus||approx. 5mm|
|Field mirror focal length||160mm(Optional 210mm/254mm/330mm/420mm)|
|Laser working mode/cooling mode||Pulsed Air cooling|
|Power regulation range(%)||10-100(Gradient adjustable)|
|Power supply||Lithium battery design(optional), 100w continuous work for 1h. 48V Standard 220V to 48V adapter|
|Pulse width/Max single pulse energy||10-500ns Adjustable 1.2mJ|
|Repetition Rate(kHz)||1-3000(Gradient adjustable)|
|Scan frequency||10Hz-300Hz continuously adjustable|
|Scanning range||0-100mm, continuously adjustable; Dual axis supports 8 kinds of scan modes|
|Total weight||16kg (including battery)|
|Working environment temperature/humidity||5°C-40°C ≤80%|
