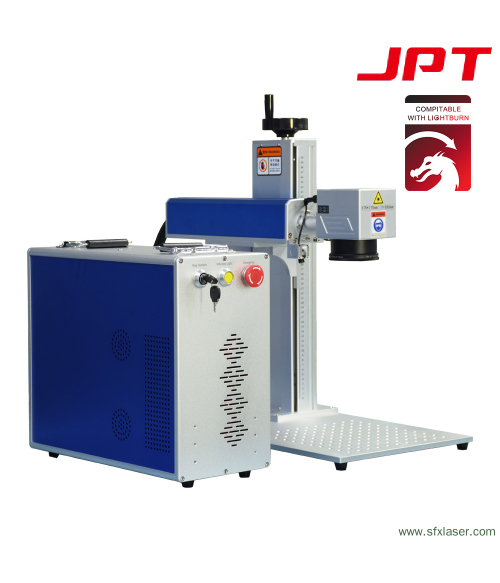

US Stock Split 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine
JPT LP+ Fiber Laser Engraver for Metal as Aluminum, Stainless Steel, Brass, Copper, Gold, Silver, Platinum, etc Marking Engraving, Thin Metal Cutting. Compatible with Lightburn.
Price:
- Upc782902058753
- Brand:SFX
- Product Code:SFX-GS-JPT
- Unit:Set
- Availability: In Stock
- Product Size:450 x 210 x 380 mm
- Weight:45 kg
| Packing Size: | 785(L) x 485(W) x 810(H) mm Set |
| G.W / N.W: | 62 / 45 kg |

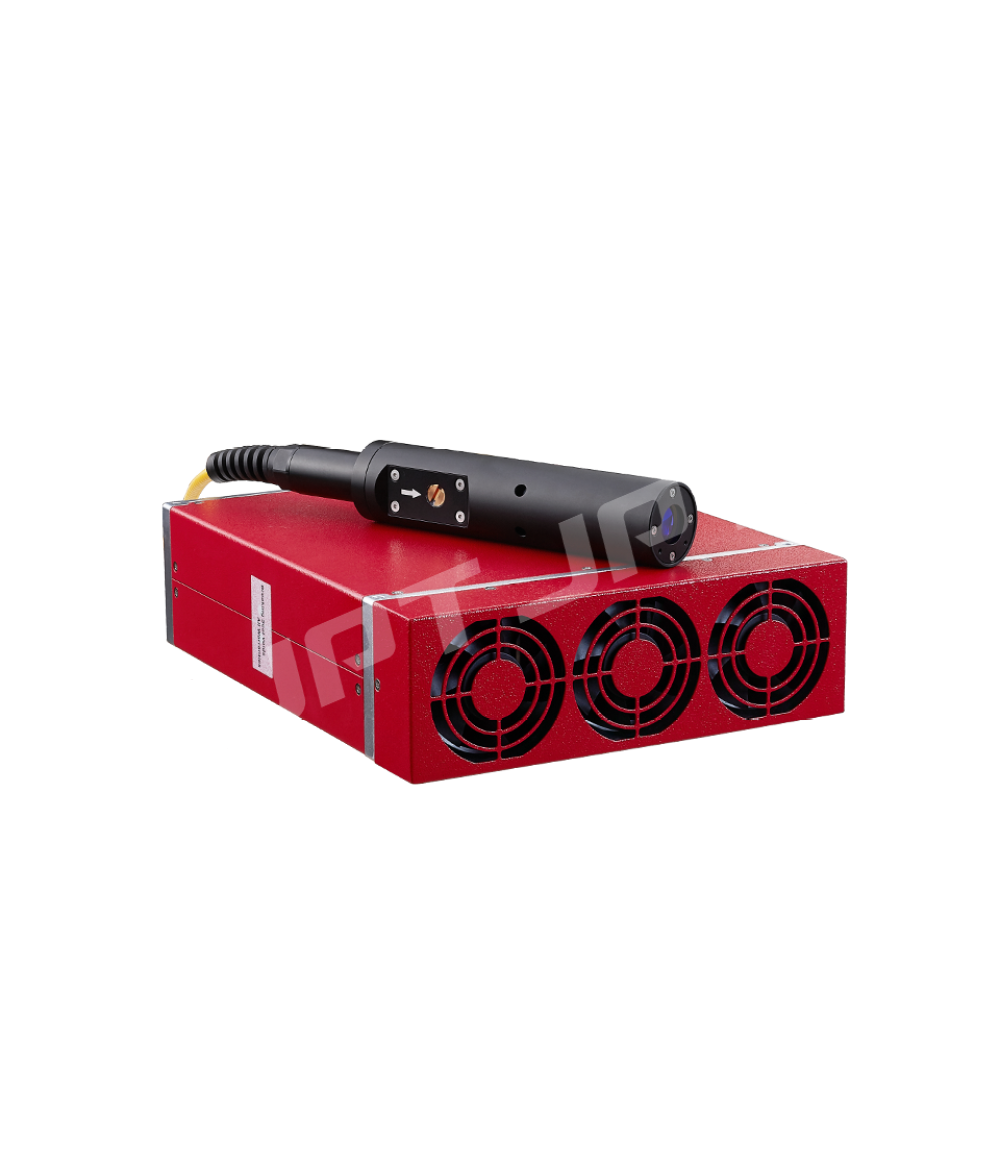

- Laser Source: 20W/30W/50W JPT LP+
- Adjustable Frequency Range: 1-600kHz
- Pulse Width: 200ns
- Marking Area(Lens): 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)/175*175mm(6.9*6.9in) Optional
- Engraving Depth: 20W≤0.2mm(0.008in); 30W≤0.4mm(0.016in); 50W≤1mm(0.039in)
- Minimum Line Width 0.01mm(0.004in); Minimum Character 0.02mm(0.008in)
- Rotary Axis: D69/D80/D100/D125mm Optional
- Software:EZCAD2 (Compatible with Lightburn) / EZCAD3 Support Windows XP/Vista/7/8/10
- Imported Laser Scanning System. Marking Speed≤7m/s; Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%.
- Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF Fonts.
- Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode, QR Code, Automatic Jump Number, etc Supported.
- Red Dot Pointer: Since the laser beam is invisible, the red dot pointer allows you to have a visual reference for locating where the laser will fire.
- Applicable Materials: Aluminum, Stainless Steel, Brass, Copper, etc. Also Some of Nonmetal Such as Nylon, Light Button, ABS, PVC, PES, etc.
- High Quality Machine Parts: JPT LP-E Laser Source,Jollystar & Wavelength F-Thea Len,JCZ-LMCV4 Control Board,Sino-Galvo Scanner.
- Applicable Industry: Hardware Industry, Wrenches, Measuring Tools, Sanitary Ware, Stainless Steel, Medical Equipment, Luggage, Gifts, Table Bottom, Glasses Frames, Instruments.
- Easy Operation, English User Manual, VCD Training Video, Software Sending Together with the Machine. ISO, CE & FDA Certificate.
- US Stock No Import Duty+Free shipping by DHL/UPS around 5 to 7 days to your Door.
- 2 Years Warranty. After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Offer Lifetime Online Technical Support.
- We also have Split JPT MOPA M7 Fiber Laser and Laser Marker Accessories for Optional.
| Product details | |
| Laser Source | JPT LP E |
| Marking Speed | 7m/s |
| Laser Power | 20W/30W50W Optional |
| Adjustable Frequency Range | 1-600kHz |
| Adjustable Pulse Width Range | 200ns |
| Lens(Marking Area) | 110×110/150×150/175×175mm |
| Engraving Depth | ≤1.0mm |
| Min. Character | 0.2mm |
| Min. Line Width | 0.01mm |
| Output power adjustment range | 10%-100% |
| Communication Mode for Automation | TCP/IP, IO,RS232 |
| Applicable OS | WIN7/8/10 |
| Input Voltage | 110V-240V/50-60Hz |
