Handheld 50W JPT Fiber Laser Engraver Metal Laser Marking Machine

JPT LP+ 50W Handheld Fiber Laser Engraver for metal and some non-metal products. EZCAD2 Compatible with Lightburn.

Message

$4,649.00

Have chosen:

* Laser Power
* Lens
Rotary Axis
* Software & Additional Function
Add to Cart

Add To Cart Successfully!

Handheld 50W JPT Fiber Laser Engraver Metal Laser Marking Machine

Handheld 50W JPT Fiber Laser Engraver Metal Laser Marking Machine

JPT LP+ 50W Handheld Fiber Laser Engraver for metal and some non-metal products. EZCAD2 Compatible with Lightburn.

Price:
  • Brand: SFX
  • Product Code: SFX-GS-A
  • Unit:Set
  • Availability: In Stock
  • Product Size:450 x 210 x 380 mm

Tags:50W JPT,Fiber Laser Engraver,Laser Marking Machine,Handheld Fiber Laser Engraver

Packing Size:    785(L) x 485(W) x 810(H) mm Set
G.W / N.W: 62 / 45 kg
Laser Power *
Lens *
Rotary Axis
Software & Additional Function *

In Stock  43

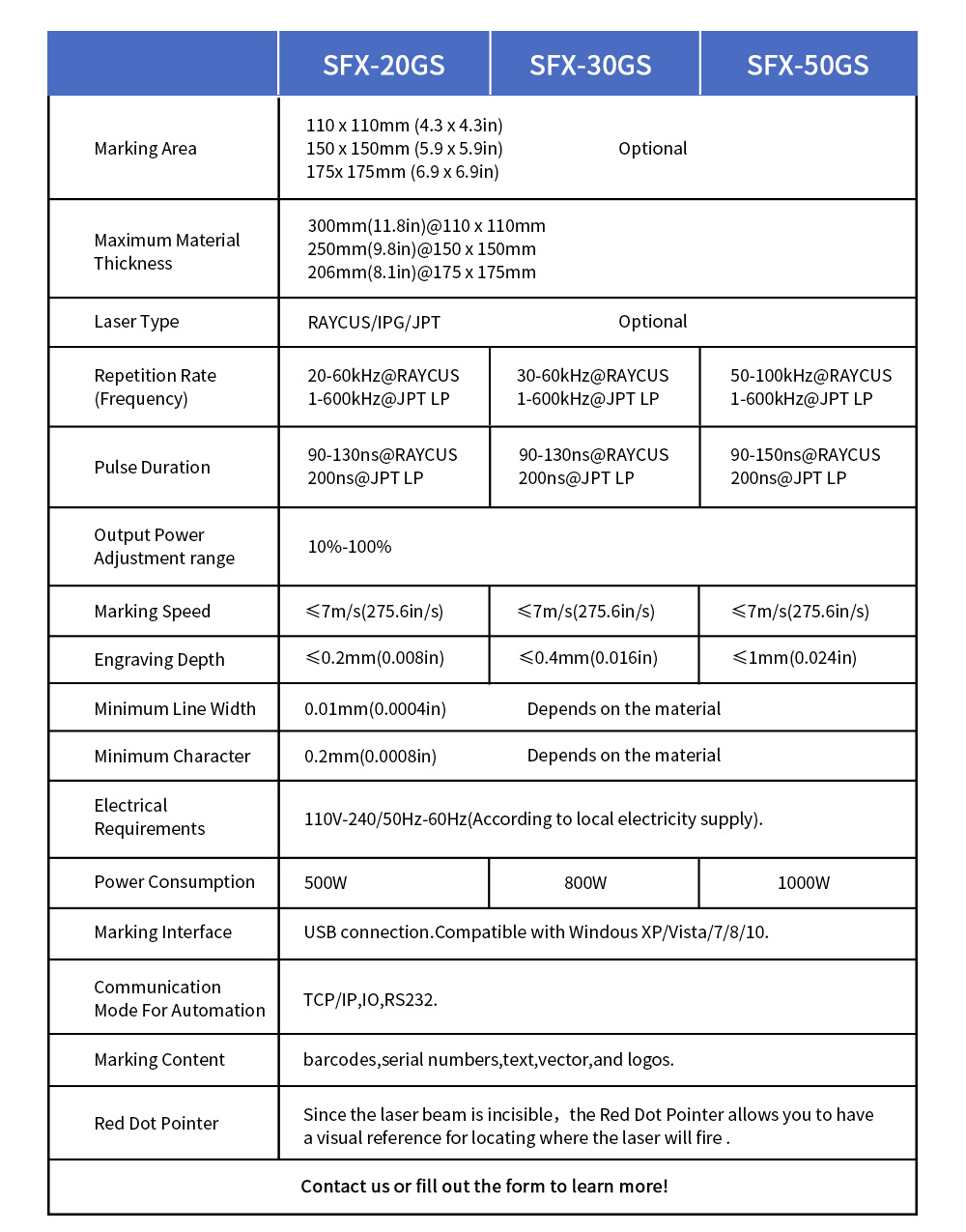

Product Parameters:

  • Laser Source: 50W JPT LP-E
  • Adjustable Frequency Range: 1-600kHz
  • Pulse Width: 200ns
  • Marking Speed:≤7m/s(275.6in/s)
  • Output Power Adjustment Range: 10%-100%
  • Electrical Requirements: 110V-240V/50Hz-60Hz
  • Power Consumption: 1000W
  • Rotary Axis: D69/D80/D100/D125mm Optional
  • Software: EZCAD2 (Lightburn Compatible) / EZCAD3
  • Communication Mode for Automation: TCP/IP, IO, RS232
  • Marking Content: Barcodes, Serial Numbers, Text, Vector, Logos
  • Marking Interface: USB Connection. Compatible with Windows XP/Vista/7/8/10/11
  • Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%
  • Minimum Line Width 0.01mm(0.004in); Minimum Character 0.02mm(0.008in)
  • Engraving Depth: ≤1mm(0.039in)
  • Marking Area(Lens): 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)/175*175mm(6.9*6.9in)
  • Maximum Material Thickness: 110*110mm:300mm(11.8in)/150*150mm:250mm(9.8in)/175*175mm:206mm(8.1in)


Features and Advantages:

  • Handheld laser head, it can mark on large-sized or heavy workpieces. Long Lifespan, Free Maintenance and Low Cost.
  • Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF Fonts.
  • Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode, QR Code, Automatic Jump Number, etc Supported.
  • Double Red Dot Focusing: Red Guideline and Red Dot for Easy Focusing.
  • Red Dot Pointer: Since the laser beam is invisible, the red dot pointer allows you to have a visual reference for locating where the laser will fire.

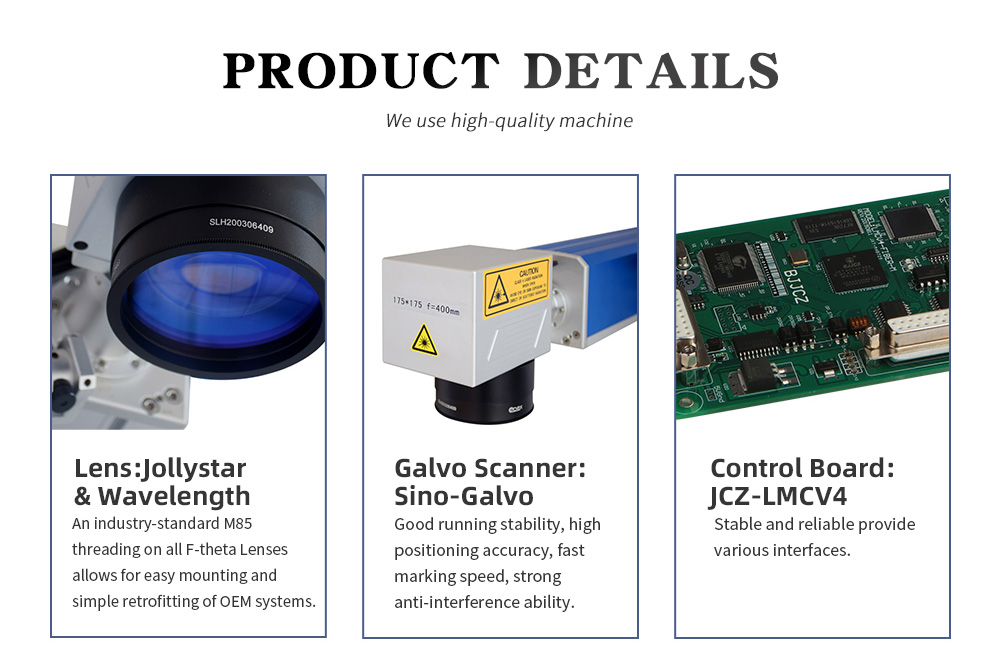

  • High Quality Machine Parts: JPT LP-E Laser Source,  Jollystar & Wavelength F-Thea Len,  JCZ-LMCV4 Control Board,  Sino-Galvo Scanner.
  • Easy Operation, English User Manual, VCD Training Video, Software Sending Together with the Machine. ISO, CE & FDA Certificate.


Application and Service:

  • Applicable Materials: Aluminum, Stainless Steel, Brass, Copper, etc. Also Some of Nonmetal Such as Nylon, Light Button, ABS, PVC, PES, etc.
  • Applicable Industry: Hardware Industry, Wrenches, Measuring Tools, Sanitary Ware, Stainless Steel, Medical Equipment, Luggage, Gifts, Table Bottom, Glasses Frames, Instruments.
  • 2 Years Warranty. After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Offer Lifetime Online Technical Support.
  • Free Shipping by DHL/UPS including tariffs and broke fees around 7 to 10 days. No Import Duty for American Customers.
  • After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. CE, ISO & FDA Certificate.

Product details
Laser Source JPT LP-E
Laser Power 50W
Lens(Marking Area) 110×110/150×150/175×175mm
Output power adjustment range 10%-100%
Marking Speed 7m/s
Engraving Depth ≤1.0mm
Min. Line Width ≤1.0mm
Min. Character 0.2mm
Input Voltage 110V-240V/50-60Hz
Communication Mode for Automation TCP/IP, IO,RS232
Applicable OS WIN7/8/10
Adjustable Frequency Range 1-600kHz
Adjustable Pulse Width Range 200ns
