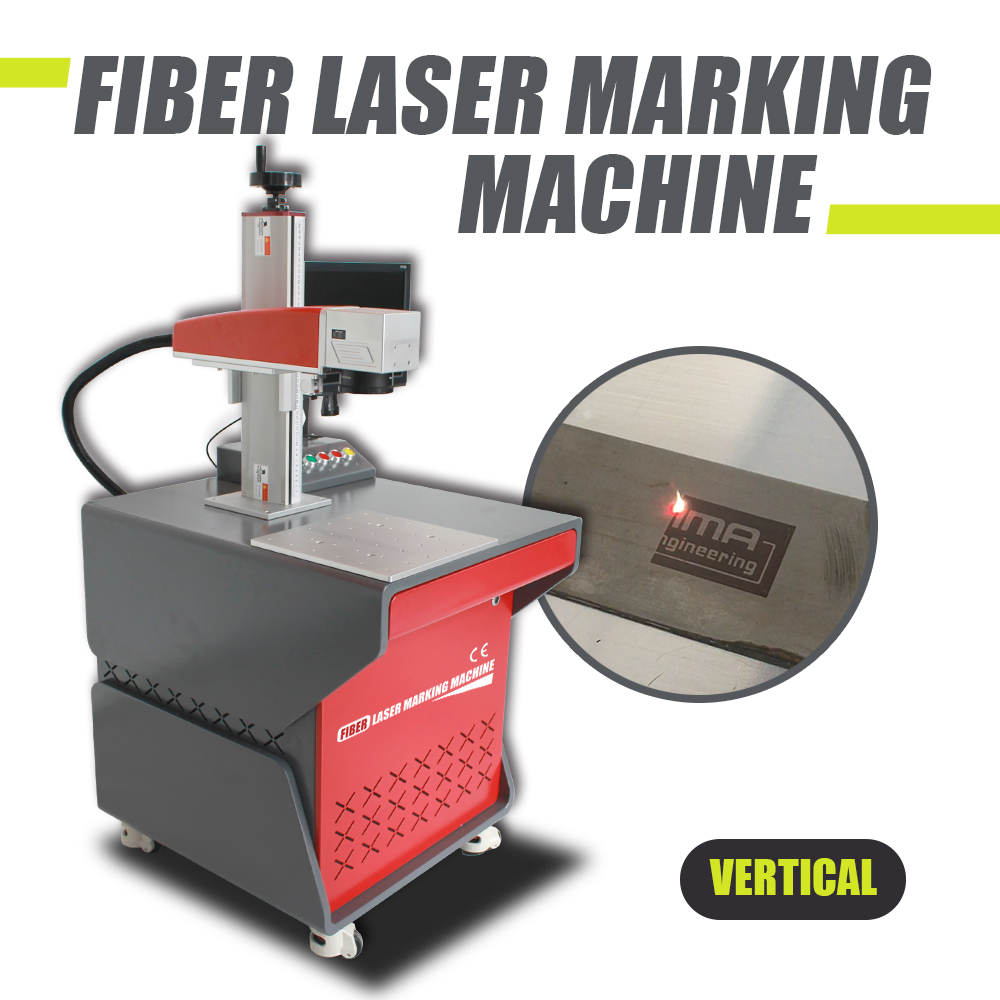

Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software

20W 30W 50W JPT Desktop Fiber Laser Engraver, Fiber Laser Metal Marking Engraving Machine.

$6,199.00

Have chosen:

*Laser Power
*Lens
Rotary Axis
*Software & Additional Function
Add to Cart

Add To Cart Successfully!

Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software
Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software
Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software
Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software
Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software
Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software
Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software

Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software

20W 30W 50W JPT Desktop Fiber Laser Engraver, Fiber Laser Metal Marking Engraving Machine.

Price:
  • Brand:SFX
  • Product Code:SFX-GD-B
  • Unit:Set
  • Availability: In Stock
  • Product Size:710 x 750 x 1400 mm

Tags:Desktop Fiber Laser,JPT Fiber Laser,20W/30W/50W JPT,Fiber Laser Engraver

Packing Size:    870(L) x 790(W) x 1130(H) mm Set
G.W / N.W:135 / 110 kg
5% OFFOrder more than $0.00Get Coupon
  • 5% OFF
    Order more than $0.00
    2024-07-08 - 2024-07-31
    Get Coupon
  • 5% OFF
    Order more than $0.002024-07-08 - 2024-07-31
    Get Coupon
  • Please input email:
Laser Power*
Lens*
Rotary Axis
Software & Additional Function*

In Stock  19

Product Parameters:

  • Laser Source: 20W/30W/50W JPT LP-E
  • Adjustable Frequency Range: 1-600kHz
  • Pulse Width: 200ns
  • Marking Speed:≤7m/s(275.6in/s)
  • Output Power Adjustment Range: 10%-100%
  • Electrical Requirements: 110V-240V/50Hz-60Hz
  • Power Consumption: 500W/800W/1000W
  • Rotary Axis: D69/D80/D100/D125mm Optional
  • Software:EZCAD2 (Lightburn Compatible) / EZCAD3
  • Communication Mode for Automation: TCP/IP, IO, RS232
  • Marking Content: Barcodes, Serial Numbers, Text, Vector, Logos
  • Marking Interface: USB Connection. Compatible with Windows XP/Vista/7/8/10/11
  • Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%
  • Minimum Line Width 0.01mm(0.004in); Minimum Character 0.02mm(0.008in)
  • Engraving Depth: 20W≤0.2mm(0.008in)/ 30W≤0.4mm(0.016in)/ 50W≤1mm(0.039in)
  • Marking Area(Lens): 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)/175*175mm(6.9*6.9in)
  • Maximum Material Thickness: 110*110mm:300mm(11.8in)/150*150mm:250mm(9.8in)/175*175mm:206mm(8.1in)

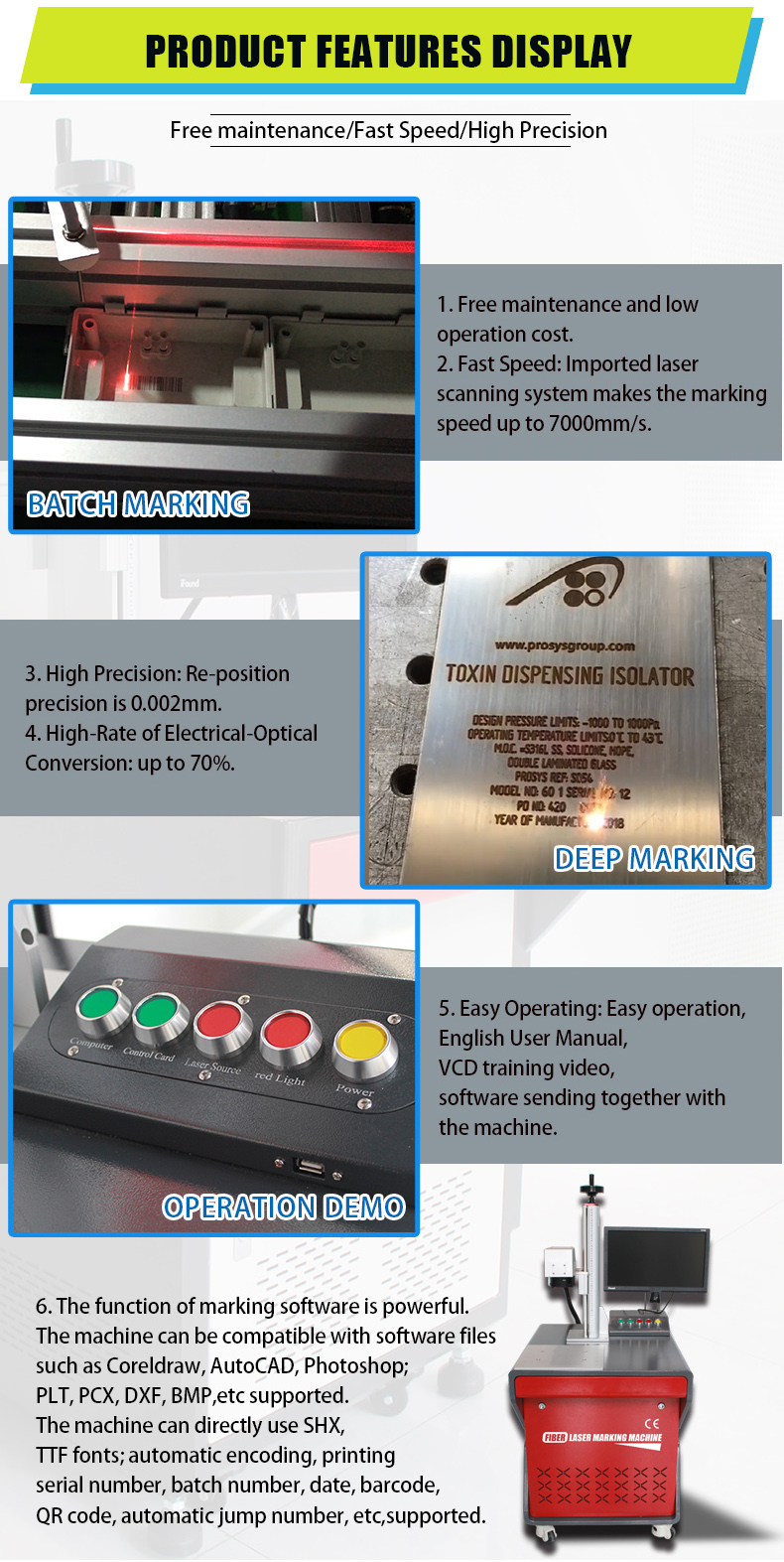

Features and Advantages:

  • Long Lifespan, Free Maintenance and Low Cost.
  • Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF Fonts.
  • Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode, QR Code, Automatic Jump Number, etc Supported.
  • Double Red Dot Focusing: Red Guideline and Red Dot for Easy Focusing.
  • Red Dot Pointer: Since the laser beam is invisible, the red dot pointer allows you to have a visual reference for locating where the laser will fire.
  • High Quality Machine Parts: JPT LP-E Laser Source,  Jollystar & Wavelength F-Thea Len,  JCZ-LMCV4 Control Board,  Sino-Galvo Scanner.
  • Easy Operation, English User Manual, VCD Training Video, Software Sending Together with the Machine. ISO, CE & FDA Certificate.



Application and Service:

  • Applicable Materials: Aluminum, Stainless Steel, Brass, Copper, etc. Also Some of Nonmetal Such as Nylon, Light Button, ABS, PVC, PES, etc.
  • Applicable Industry: Hardware Industry, Wrenches, Measuring Tools, Sanitary Ware, Stainless Steel, Medical Equipment, Luggage, Gifts, Table Bottom, Glasses Frames, Instruments.
  • Free shipping by DHL/UPS around 5 to 7 days to your Door. No Import duty for American customers.
  • 2 Years Warranty. After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Offer Lifetime Online Technical Support.
  • We also have  20W 30W 50W JPT Fiber Laser Engraver  for Optional.

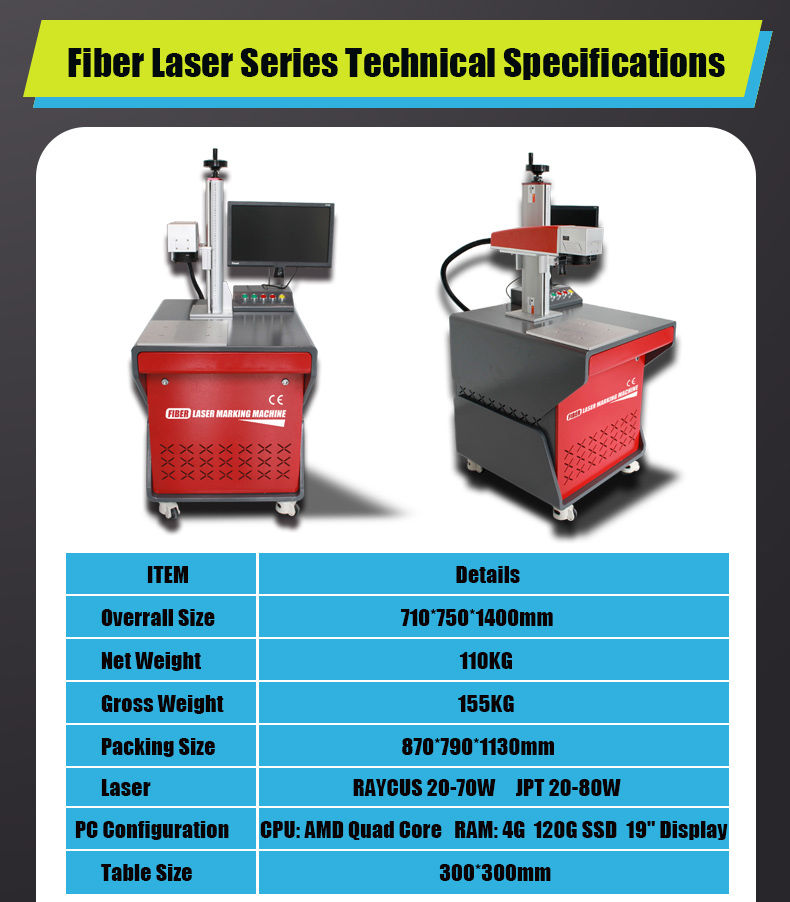

Product details
Laser Source JPT LP E
Marking Speed7m/s
Laser Power20W/30W/50W Optional
Adjustable Frequency Range1-600kHz
Adjustable Pulse Width Range200ns
Lens(Marking Area)110×110/150×150/175×175mm Optional
Engraving Depth≤1mm
Min. Character0.2mm
Min. Line Width≤0.01mm
Output power adjustment range10%-100%
Communication Mode for AutomationTCP/IP, IO,RS232
Applicable OSWIN7/8/10
Input Voltage110V-240V/50-60Hz
