Product Parameters:

• Laser Source: 60W/80W/100W YDFLP-M7-M-R JPT MOPA M7 (MOPA C Series)
• Marking Area: 100*100mm(4*4in)/200*200mm(8*8in) optional
• Repetition Rate: 1-4000kHz；Pulse Duration: 2-500ns
• Output Power Adjustment Range: 10%-100%
• Marking Speed: ≤ 7m/s(275.6in/s)
• Engraving Depth: ≤1.2mm(0.005in)/1.5mm(0.06in)/2.0mm(0.08in)
• Minimum Line Width: 0.01mm(0.0004in); Minimum Character: 0.2mm(0.0008in)
• Electrical Requirements:110V-240V/50Hz-60Hz
• Power Consumption: 1200W/1300W/1500W
• Marking Interface: USB connection, Compatible with Windows XP/Vista/7/8/10
• Communication Mode for Automation: TCP/IP, IO, RS232
• FEELTEK 3D Dynamic Focus System; LenMark 3D Software
• Red Dot Pointer: Since the laser beam is incisible, the red dot pointer allows you to have a visual reference for locating where the laser will fire.

Features and Advantages:

• Adopted advanced optical design scheme, small light loss, small volume, high positioning accuracy,fast marking speed and strong anti-interference ability, etc.
• Suitable for laser fine processing of various large surface, complex surface and deep carving.
• High speed system, meets above 3000mm/s precision hatch speed. Maximum marking height up to 80mm@200*200mm
• Maximum scan field up to 200*200mm, meets large scan field engraving requirements. (300*300mm/400*400mm optional)
• Precisely control the focal length position, automatically adjust Z-axis for 3D deep marking process, keep the minimum spot size, ensure the uniform graphic effect.
• Adoptedlenmark 3D software system(MM3D Optional), support various file formats, vector, bitmap and text bar code import.
• Built-in concave and convex circular tube, concave and convex sphere, slope, cone, polygon and other basic models, easy operation.
• 3D models can be imported; 2D graphics can be directly cladded or projected on built-in curve surface.
• The whole system adopted the optimization designing of electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability.

3D Galvanometer Advantages:

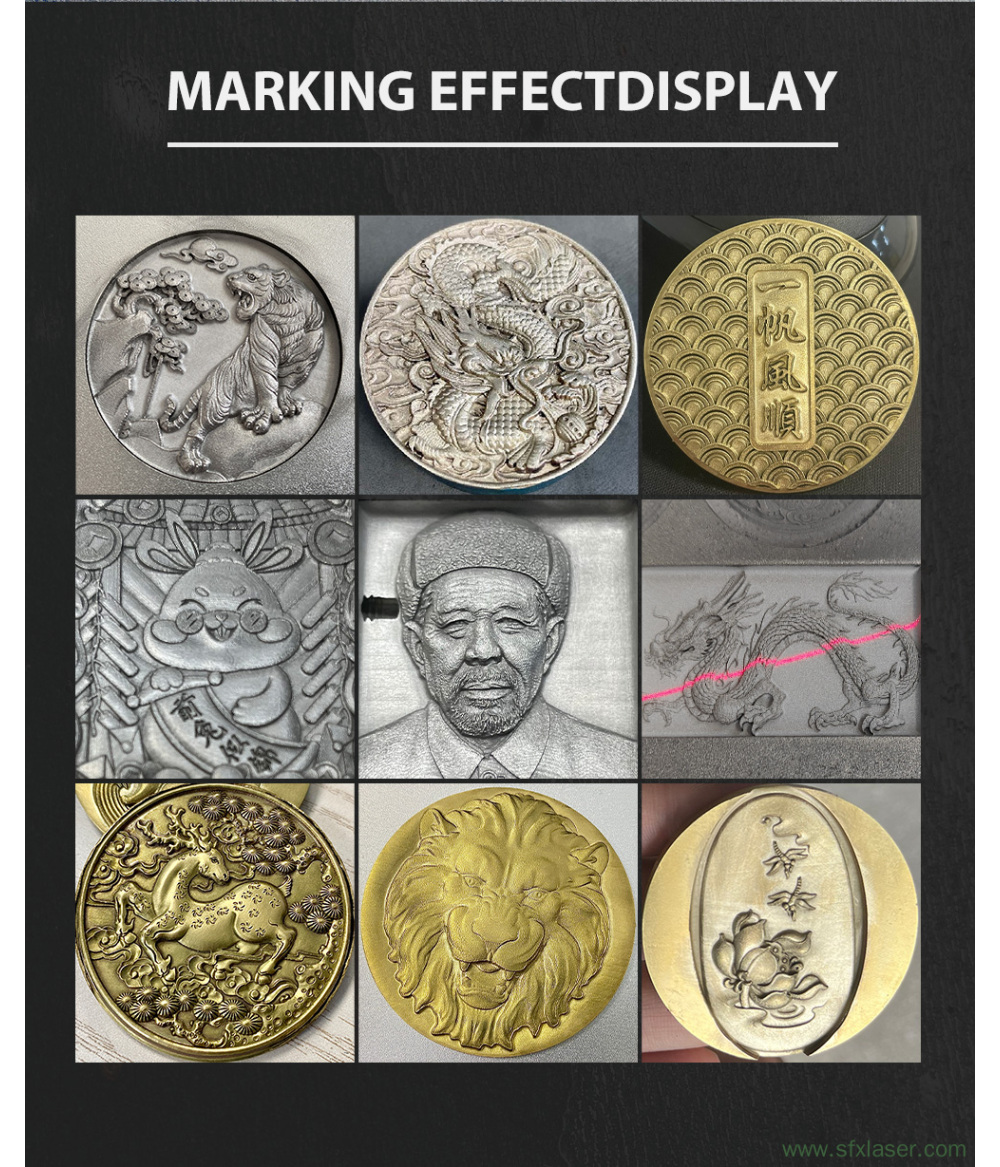

• 3D surface processing. Can do distortion marking in the large-scale surface, 3D surface, steps, cone surface, slope surface, and other objects.
• The dynamic axis collaborates with the XY axis scannhead, can easily layered relief, deep carving and texture etching.
• High precision. With the increasing processing layer, the dynamic focus axis jointly adjusts the focal length and spot in real-time to encuse that the focus spot controllable during the whole processing process, adcieve higher accuracy.
• High Efficiency. The dynamic axis is fully coordinated with the XY axis, and the hierarchical focus compensation is completed with miroseconds.

Application and Service:

• Multiple applicable environments. Without the extra moving platform, the dynamic focus system can achieve accurate 3D marking, engraving and other laser applications.
• Suitable material: brass, carbon steel, mold steel, stainless steel, SIC etc.
• 2 years warranty, offer remote assistance, 24h customer and technical support.
• Free shipping by UPS, 5-10 days to your door. No import duty for American customers.
