Product Parameters:

• Model: LJW-200
• Laser Wavelength: 1064nm
• Laser Frequency: 0-50Hz
• Condenser Reflector: Imported ceramic condensing cavity
• Maximum Laser Power: 200W
• Energy: 60J
• Voltage: 220V 1 Phase/ 380V 3 Phase (Voltage transformer is needed if for 110V)
• Pulse Width: 0-20ms
• Spot Adjustment Range: 0.3-2.5mm
• Cooling System: Built-in water cooler 1P
• Rated Power: 6.5KW
• Packaging Size: 1100*700*1300mm
• Gross Weight: 180kg
• Usage Environment: 10-30°C

Features and Advantages:

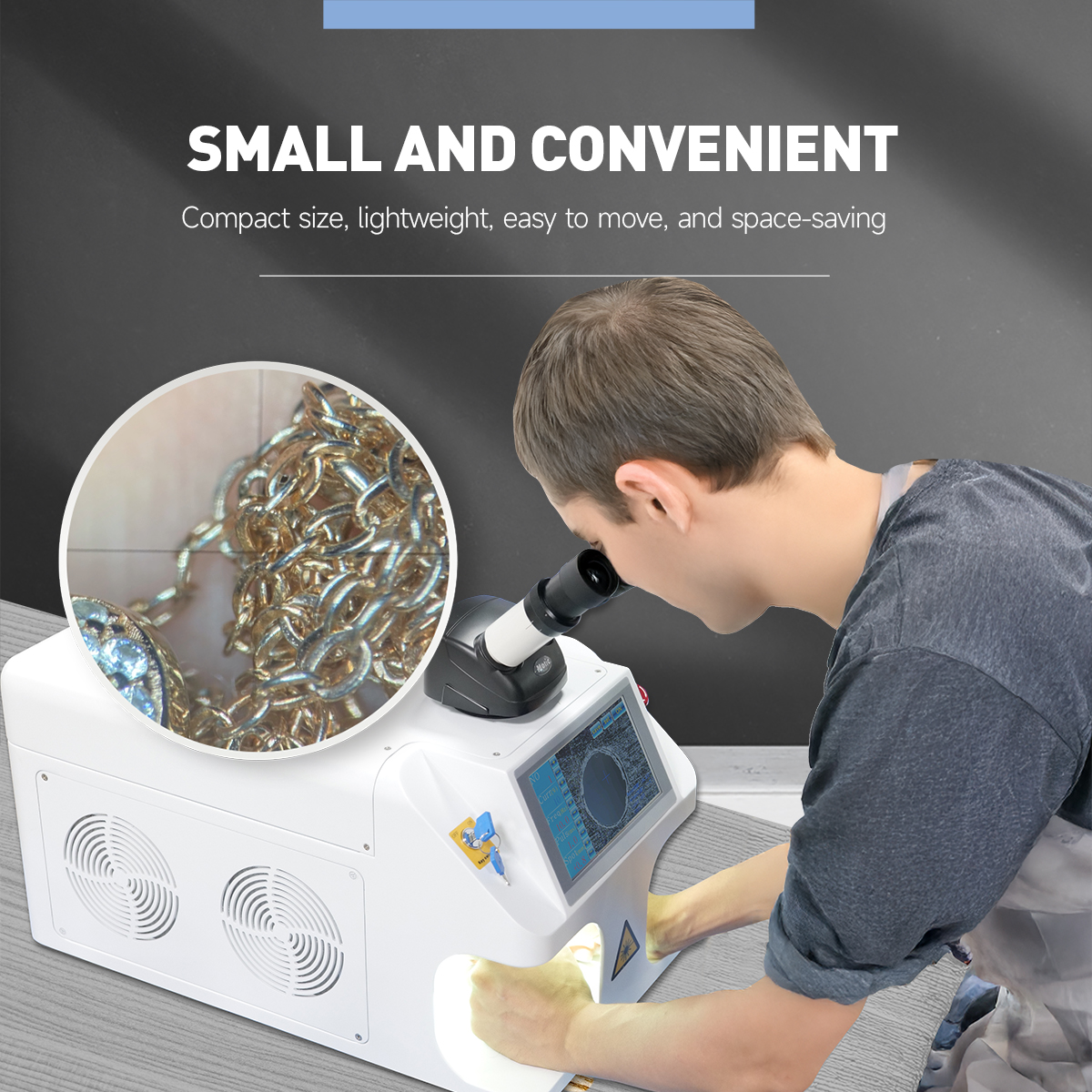

• Microscope with CCD image sensor. Welding Joints trajectory can be easily observed on the screen, convenient for micro-size processing.
• The binocular pupil distance of the high-definition microscope is adjustable, and the direction can be rotated for observation
• Ceramic laser cavity. High photoelectric effect, temperature and corrosion resistance, long service life, high stability.
• Digital control system. The sensitive color capacitive touch screen makes it easy and convenient to operate.
• Built-in water tank with compressor, water circulation and air cooling to reduce internal temperature.
• Multiple welding modes. The laser single pulse energy, pulse width, frequency, spot size and other parameters can be adjusted to achieve different welding process modes.
• LED ring shadowless light. 360°dead-angle-free illumination, Clearer observation of welding position.

Application and Service:

• It is suitable for micro-processing of tiny parts, such as patching holes, spot welding grit holes, repairing seams, and spot-welding inlaid parts in gold and silver jewelry.

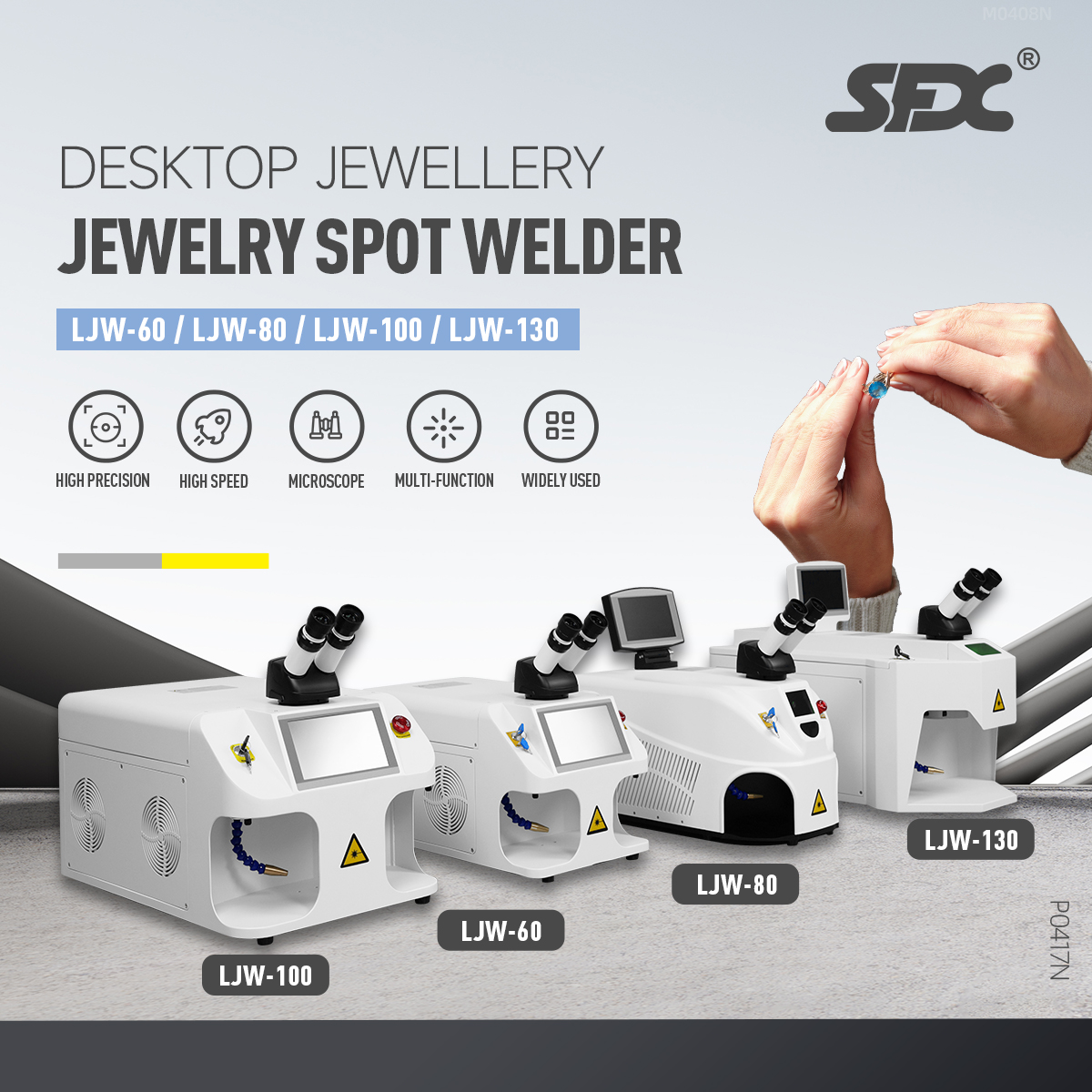

• Jewelry spot welding machine is mainly used in jewelry, dental, instruments, electronics, and other industries.
• 1 Year Warranty. 7*24 hours online service, remote assistance for operation issues, lifetime online technical support.
• Free shipping by express to your door about 7-10 days, no import duty for American customers.
