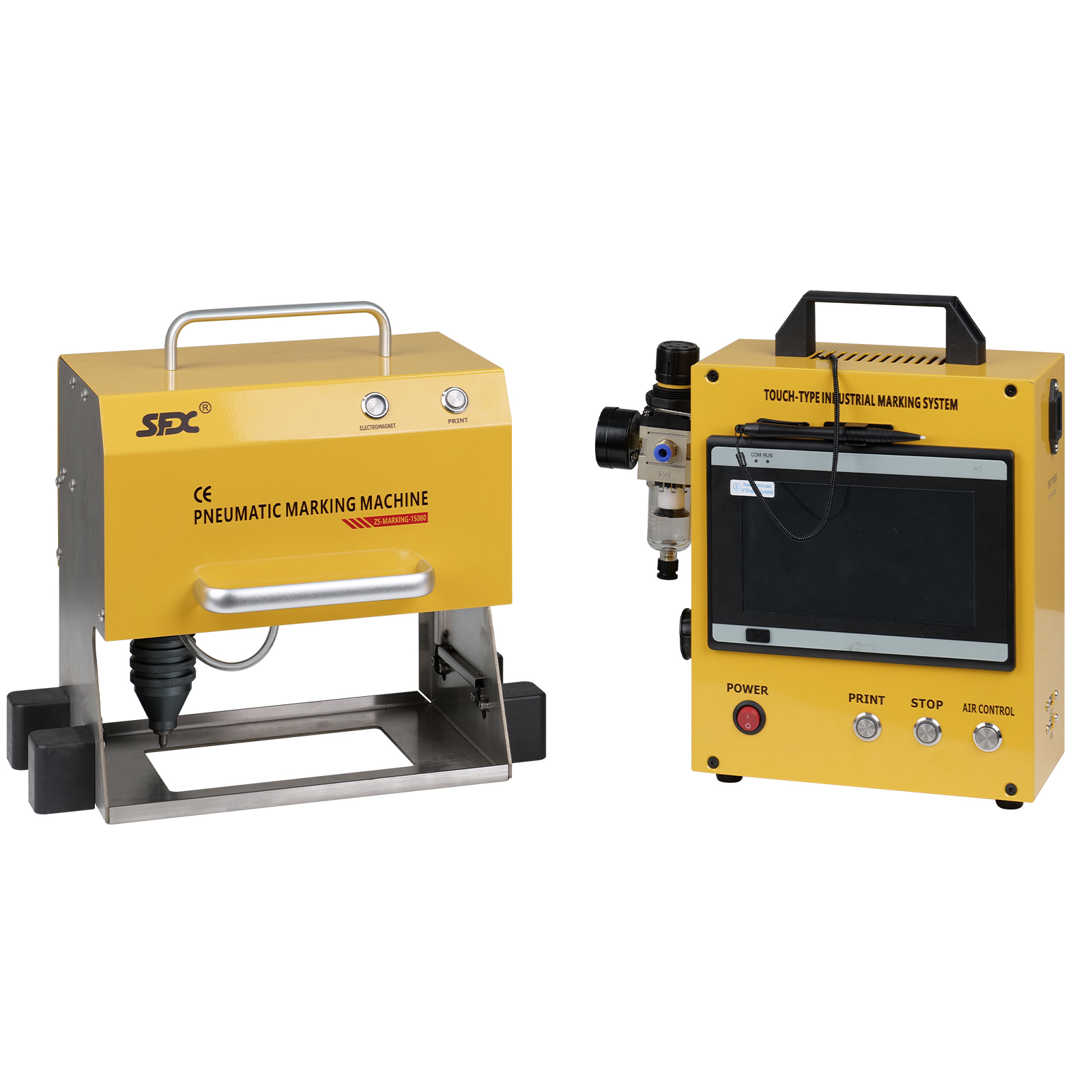

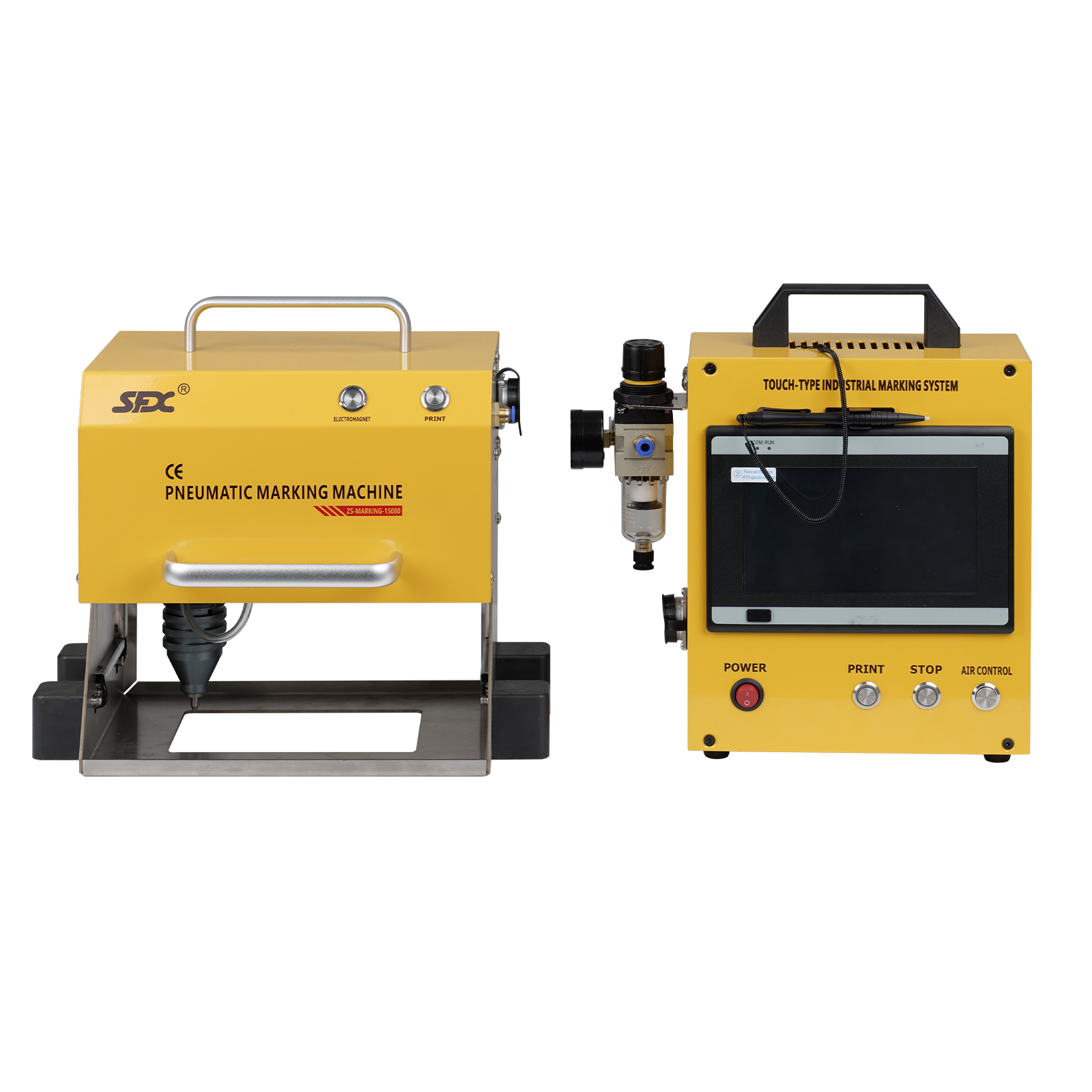

SFX 150*80mm Pneumatic Marking Machine Dot Peen Marking Machine VIN Code Frame Nameplate Engraving Machine
SFX Powerful Type ZS-MARKING-15080 Pneumatic Dot Peen Marking Machine, Marking Area: 150*80mm, 7 inch touch screen.
- Brand: SFX
- Product Code: ZS-MARKING-15080
- Availability: In Stock

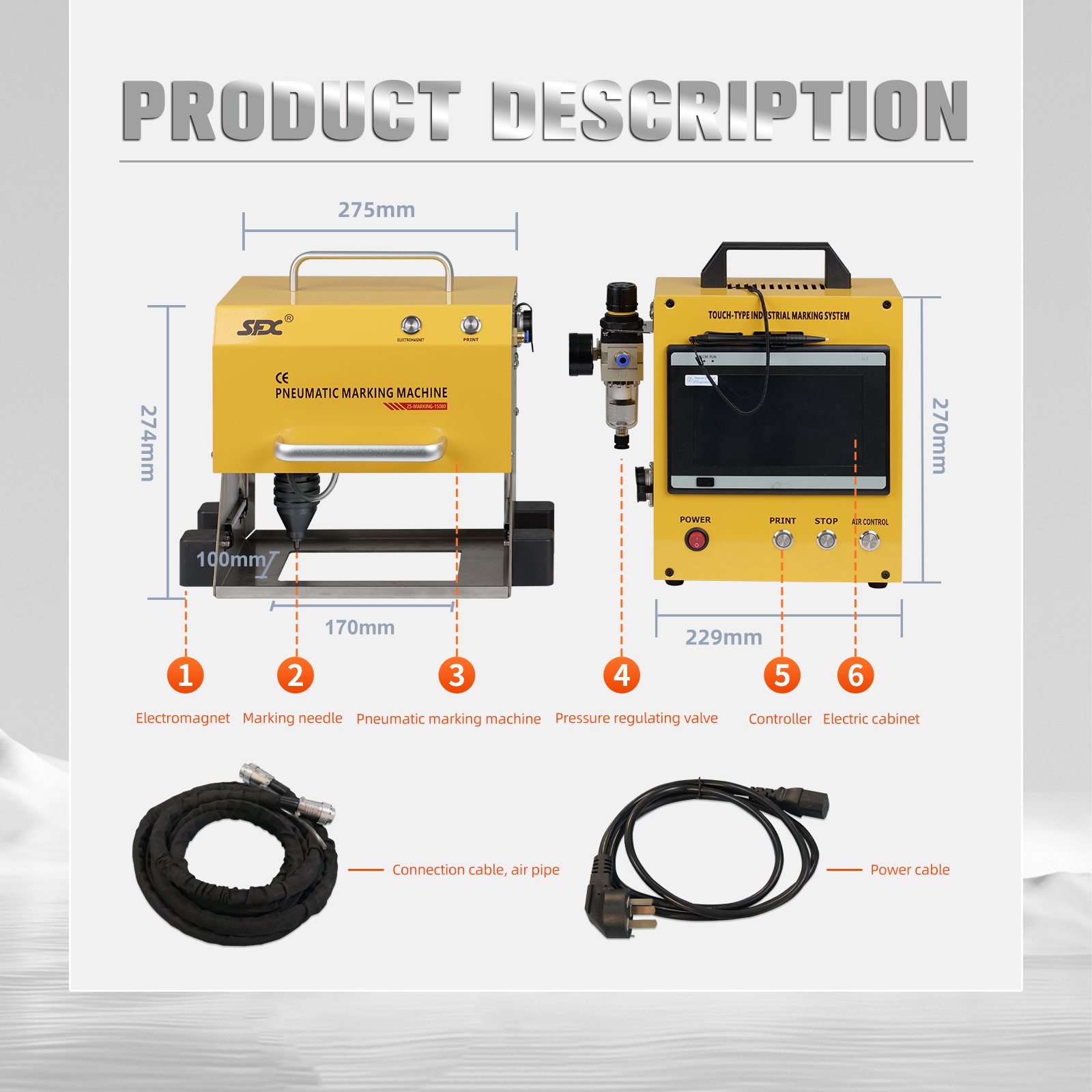

- Product Size:0.7 x 0.4 x 0.32 m
- Weight: 17 kg
Product Parameters:
- Marking Depth: 0.02-1mm
- Marking Speed: 3-5 characters/second
- Marking Range: 150*80mm
- Power Supply: AC220V/110V, 50Hz
- Air Pressure: 0.4-0.6Mpa
- Power Consumption: 100W
- Operating Temperature: 1-40°C
- Relative Humidity: <90%
- Net Weight: 17kg
- Gross Weight: 19kg
- Packing Size: 700*400*320mm
Features and Advantages:
- No computer required, built-in 7-inch touch screen controller, automatic marking, simple operation
- Integrated fully enclosed display screen. Dust protection, durable use, low maintenance
- Deep marking, bilingual in Chinese and English, high hardness, long lifespan, exquisite marking, strong adsorption

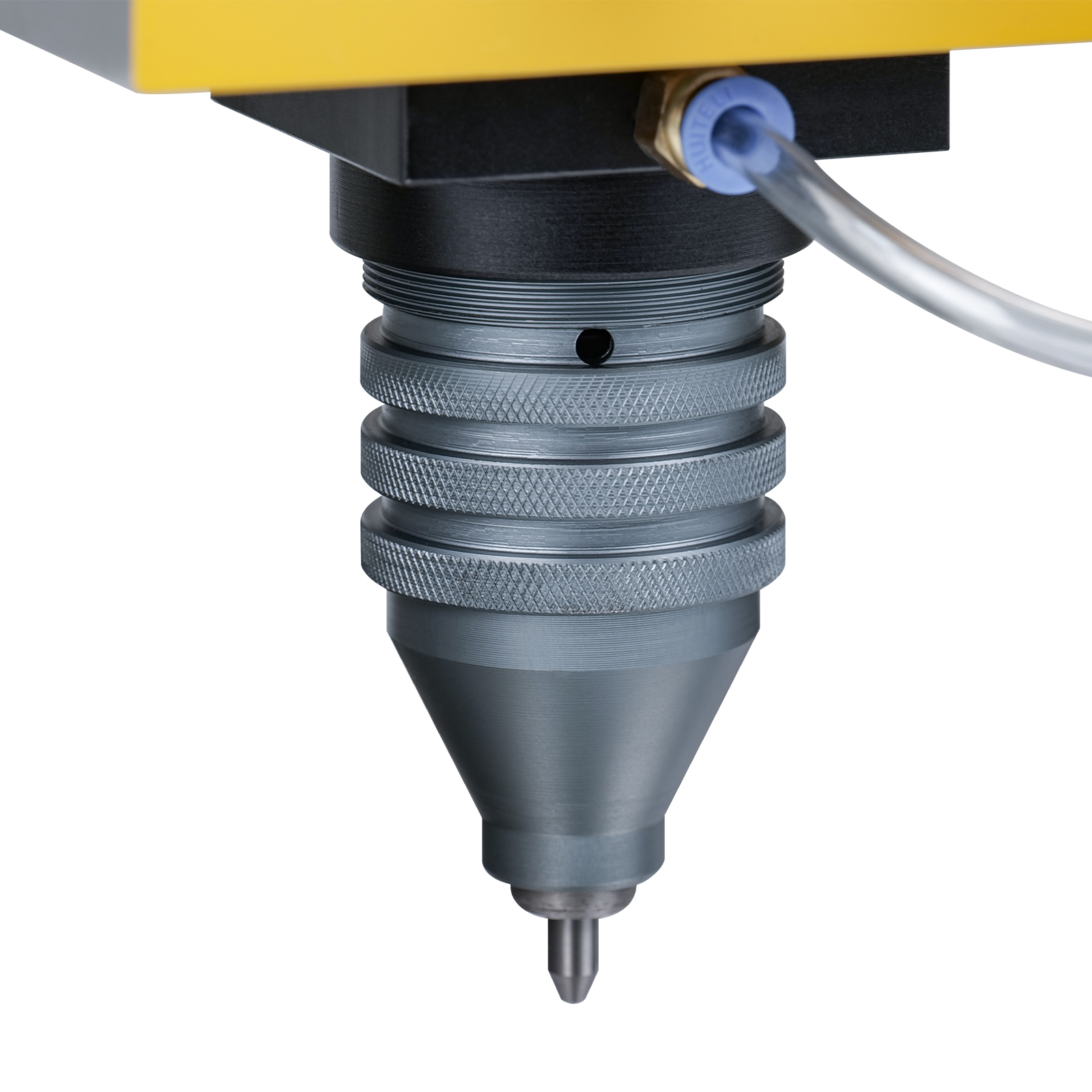

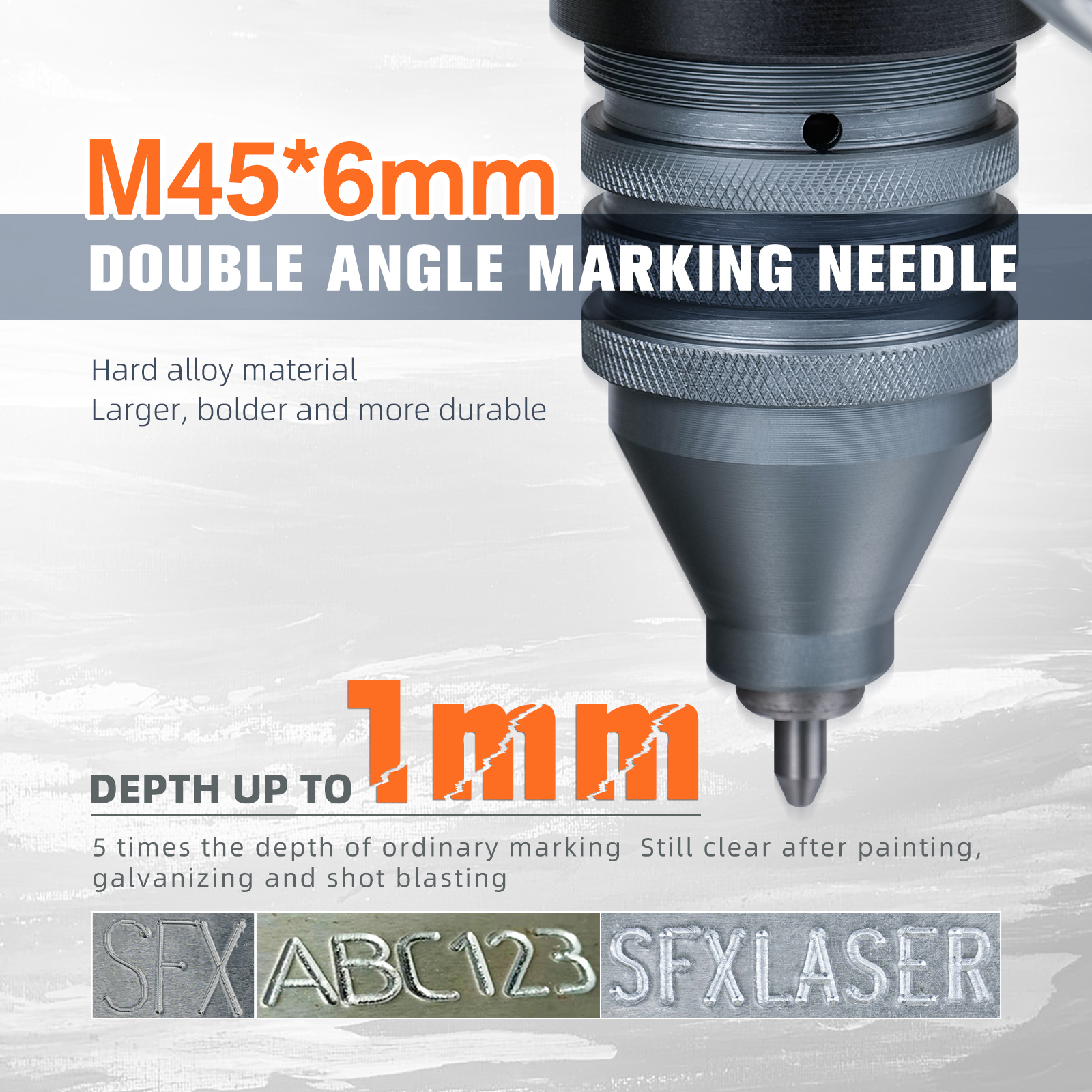

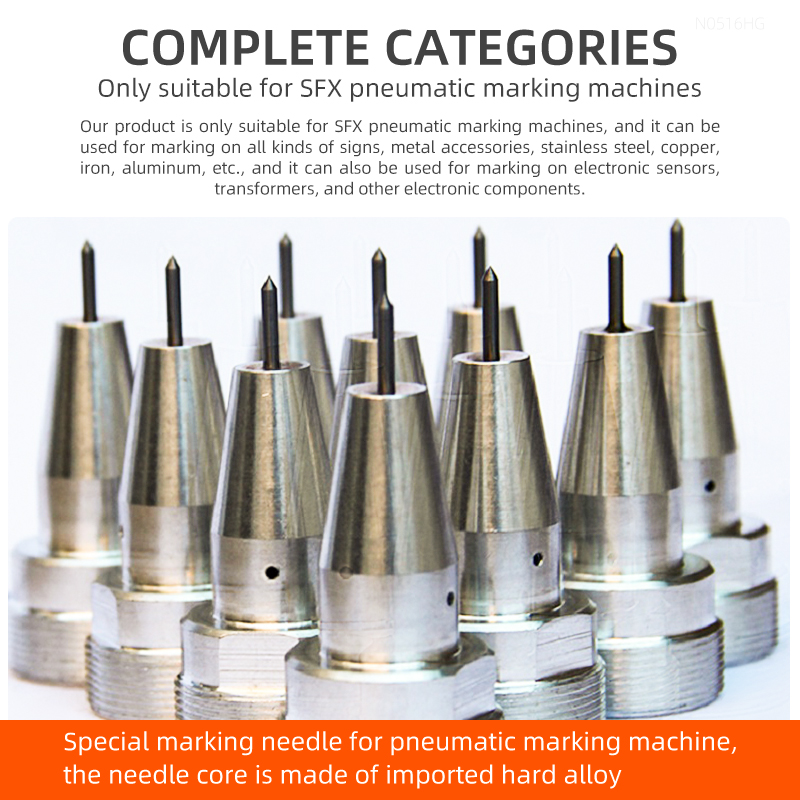

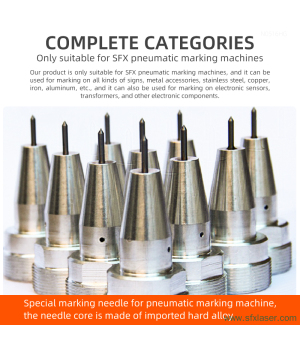

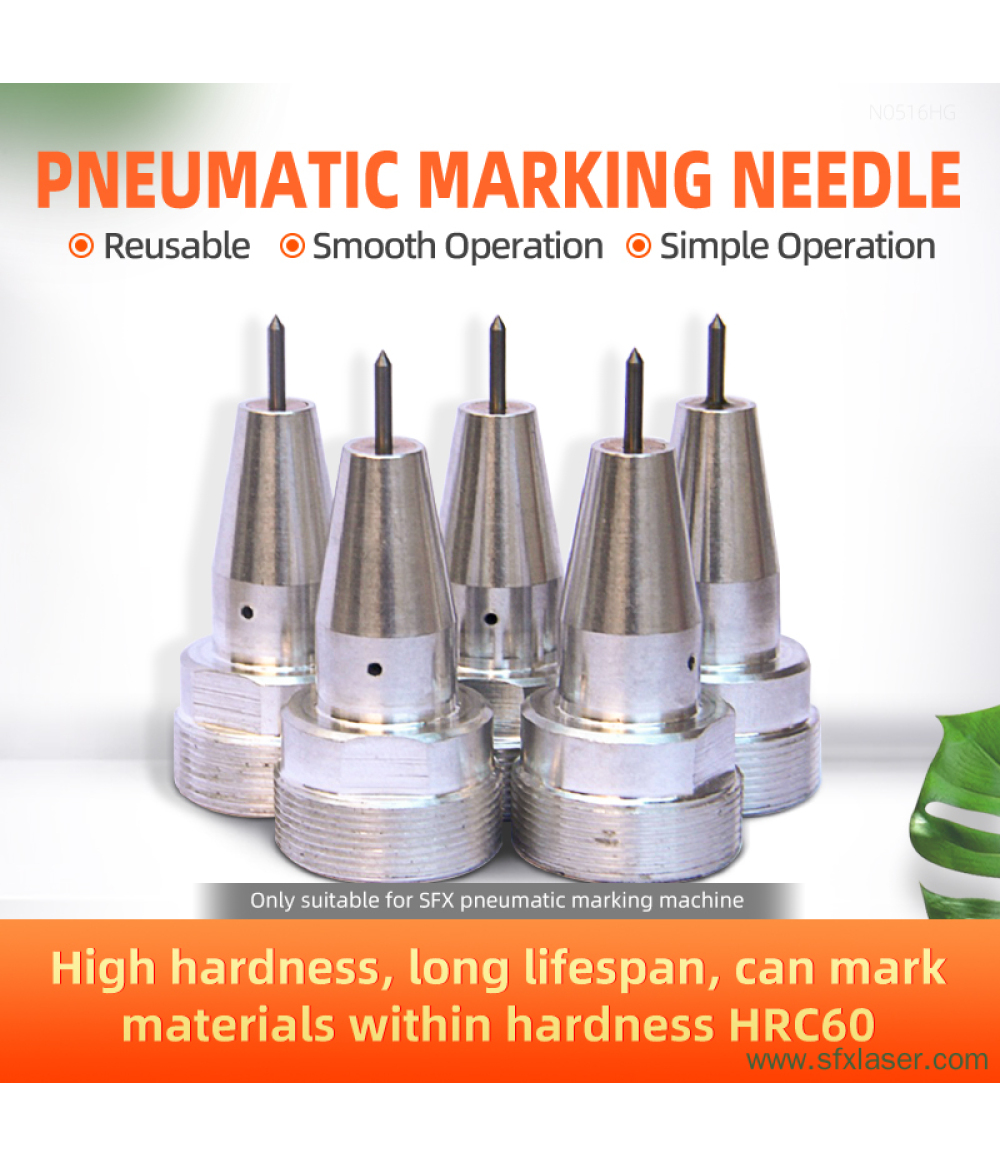

- M45*6mm double angle marking needle, hard alloy material, larger, bolder and more durable
- Depth up to 1mm, 5 times the depth of ordinary marking, still clear after painting, galvanizing and shot blasting

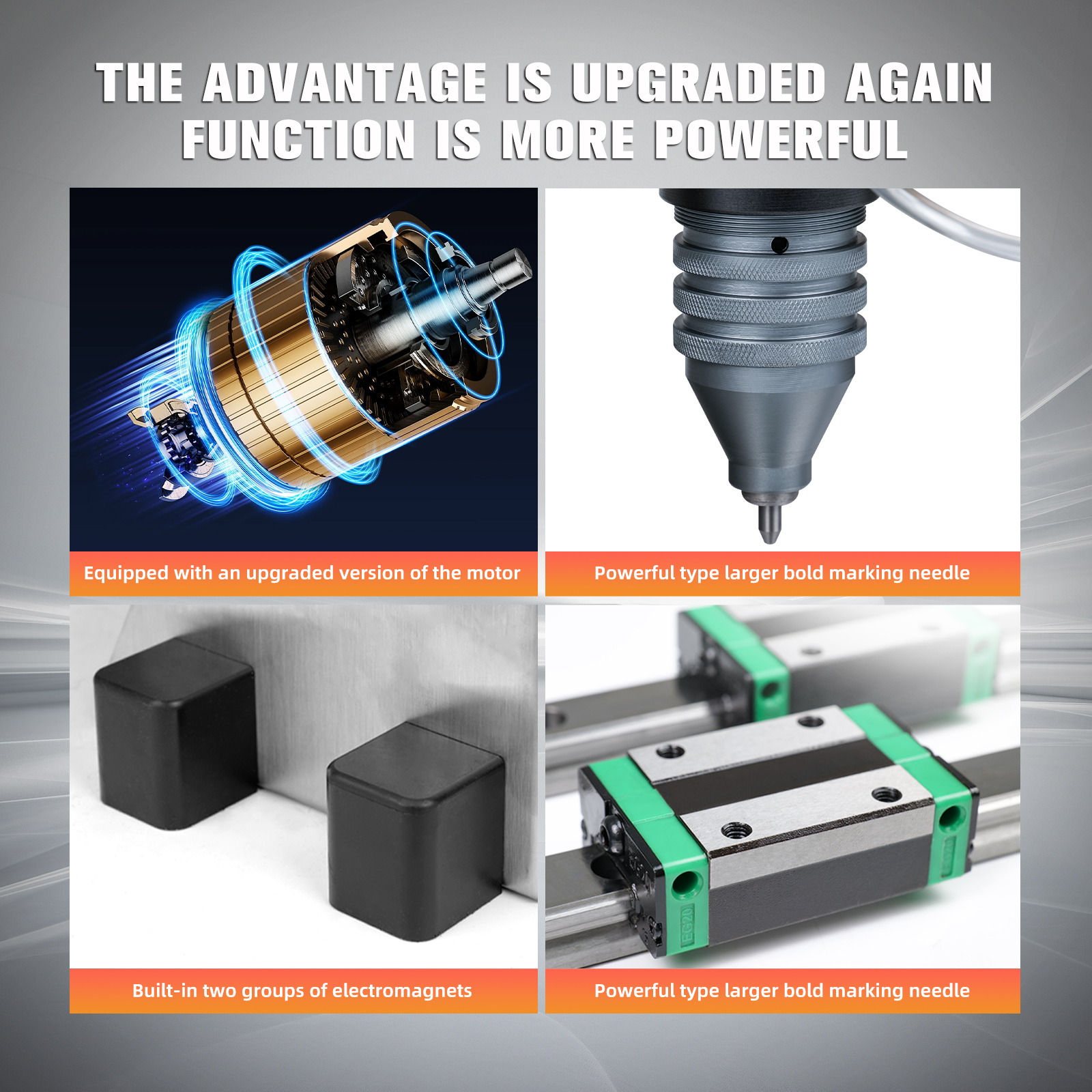

- Equipped with an upgraded version of the motor, higher torque, movement is more powerful
- Built-in two groups of electromagnets, stronger adsorption force. Machine doesn't need to be held by hand, can be firmly attached to the magnetic workpiece surface
- High precision linear guide, movement length is increased. Marking range is upgraded to 150*80mm, adapt to more scene needs
- 40°C high temperature test, can keep long time working with the high temperature
- Application: marking of chassis number, VIN Code, fixed characters, round pipes, serial numbers, batch numbers, date and graphics, etc.
- Can be used for marking the material that the hardness is less than HRC65, such as plastic, rubber, bakelite, hard paper, etc.
| Product details | |
| Air Pressure | 0.4-0.6Mpa |
| Gross Weight | 19kg |
| Marking Depth | 0.02-1mm |
| Marking Range | 150*80mm |
| Marking Speed | 3-5 characters/second |
| Model | ZS-MARKING-15080 |
| Net Weight | 17kg |
| Operating Temperature | 1-40°C |
| Packing Size | 700*400*320mm |
| Power Consumption | 100W |
| Power Supply | AC220V/110V, 50Hz |
| Relative Humidity | <90% |
