Product Parameters

• Model: SFX-1325
• Working area: 1300*2500mm
• Fiber Laser Power: 1KW/1.5KW/2KW
• Laser Wavelength: 1080nm
• Beam Quality: ＜0.373mrad
• Cutting Accuracy: ±0.05mm
• Re-position Accuracy: ±0.03mm
• Max. Acceleration: 1.2G
• Max.Cutting Speed: 60m/min
• Assist Gas: Air, Oxygen, Nitrogen
• Cooling Method: Industrial Circulation Water Chiller
• Aiming and Positiong: Red Dot
• Working Voltage: 110V/220V/380V 50-60Hz(According to customer's local voltage)
• Packing Dimensions: 370*207*172cm
• Packing Weight: 2500kg

Product Features:

• EU CE and US FDA Certification. Easy to Operate and Convenient to Use. Smooth Surface without Burrs.
• MAX Laser Source. Modular Design, High Integrated System. Free Maintenance, High Beam Quality and Laser Stability. S&A Water Chiller.
• Cypone/Cypcut Sofeware System. Professional Cutting Control System, Adjustable Laser Power. Supports DXF/DWG Format.
• RAYTOOLS Cutting Head. Auto Focus Function. Continuous Focusing for Automatic Cutting of Plates of Different Thicknesses and Materials.
• Yaskawa Nidec Servo Motor, High Positioning Accuracy, Fast Positioning Speed. Japan Nidec, Germany Newgear Reducer. Taiwan PMI Guide Rail/YYC Rrck and Pinion.
• Finishing Heavy-duty Tube Welding Bed. Aviation Industry Extruded Aluminum Beams. Intelligent Lubrication Control System. Remote Control Handle.

Different Material Cutting Capacity (To ensure the desired result it is best to choose the next higher power rating to meet the maximum desired thickness)

Support Provided by SFX Laser:

• Financial installment assistance provided to solve US customer's financial problems.
• USA local technical support  can fast solve customer's after-sales problems.

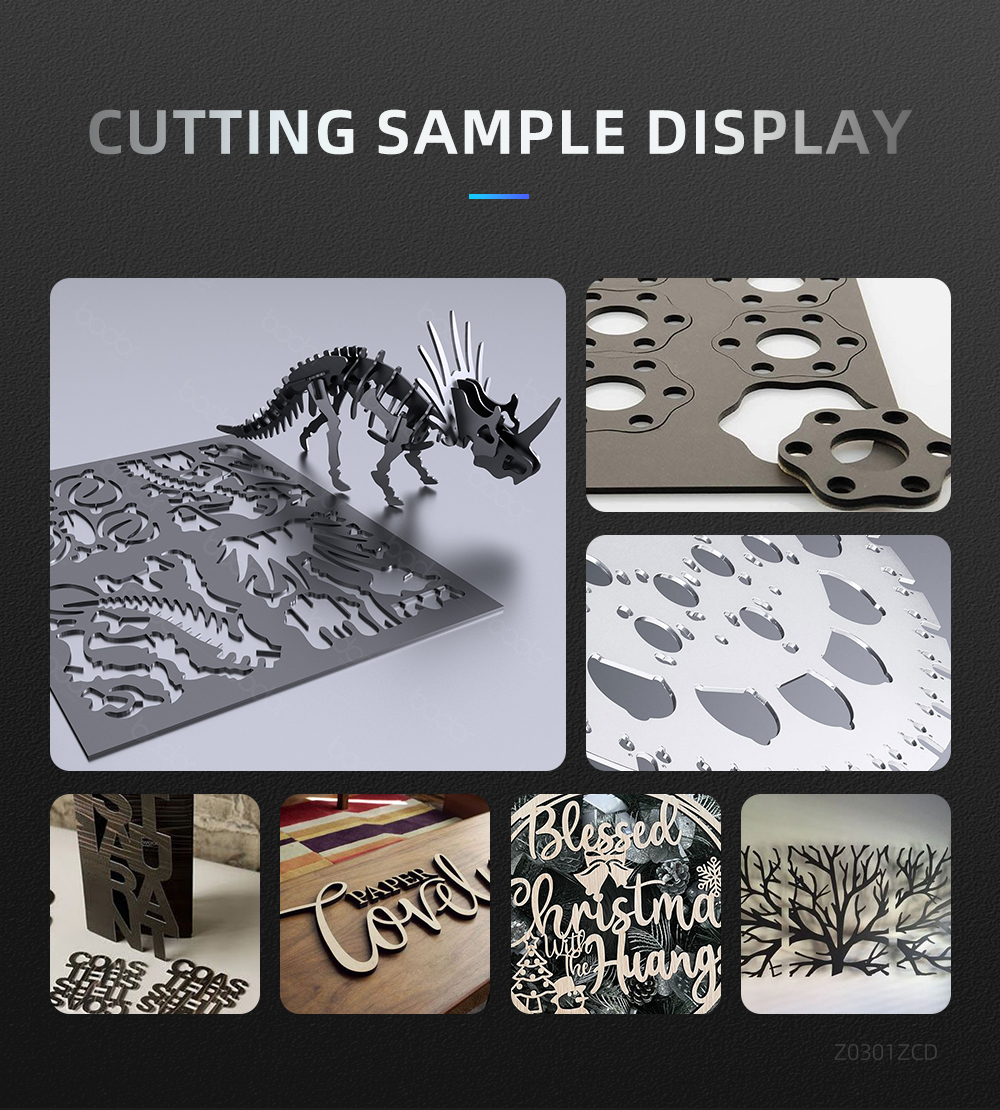

• Free sample processing service provided according to customer's drawing and provide video after demo finished.
• Offer customization machine according to customer's requirements and design the most suitable machine for customers.
• After production completed we will provide pictures and trial processing video. And arrange transportation only after customer is satisfied. Provide online one-on-one installation and operation guidance after machine delivered.

Application and Warranty

• Applicable Materials: Carbon Steel, Manganese Steel, Stainless Steel, Color Steel Plate, Foliate Lamina, Aluminum Plate, Aluminum Alloy, Brass, Copper, Titanium Plate.
• Widely used for sheet metal fabrication, advertising industry, elevator production, automobile parts, manufacturing industry and metal cabinet industry.
• 1 Year Warranty for the Whole Machine, 2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Sea&Truck to Door Around 60 to 70 Days. No Import Duty for American Customers.
