Enclosure 60W/80W/100W/120W YDFLP-M7-M-R JPT MOPA M7 Fiber Laser Marker Laser Engraving Machine

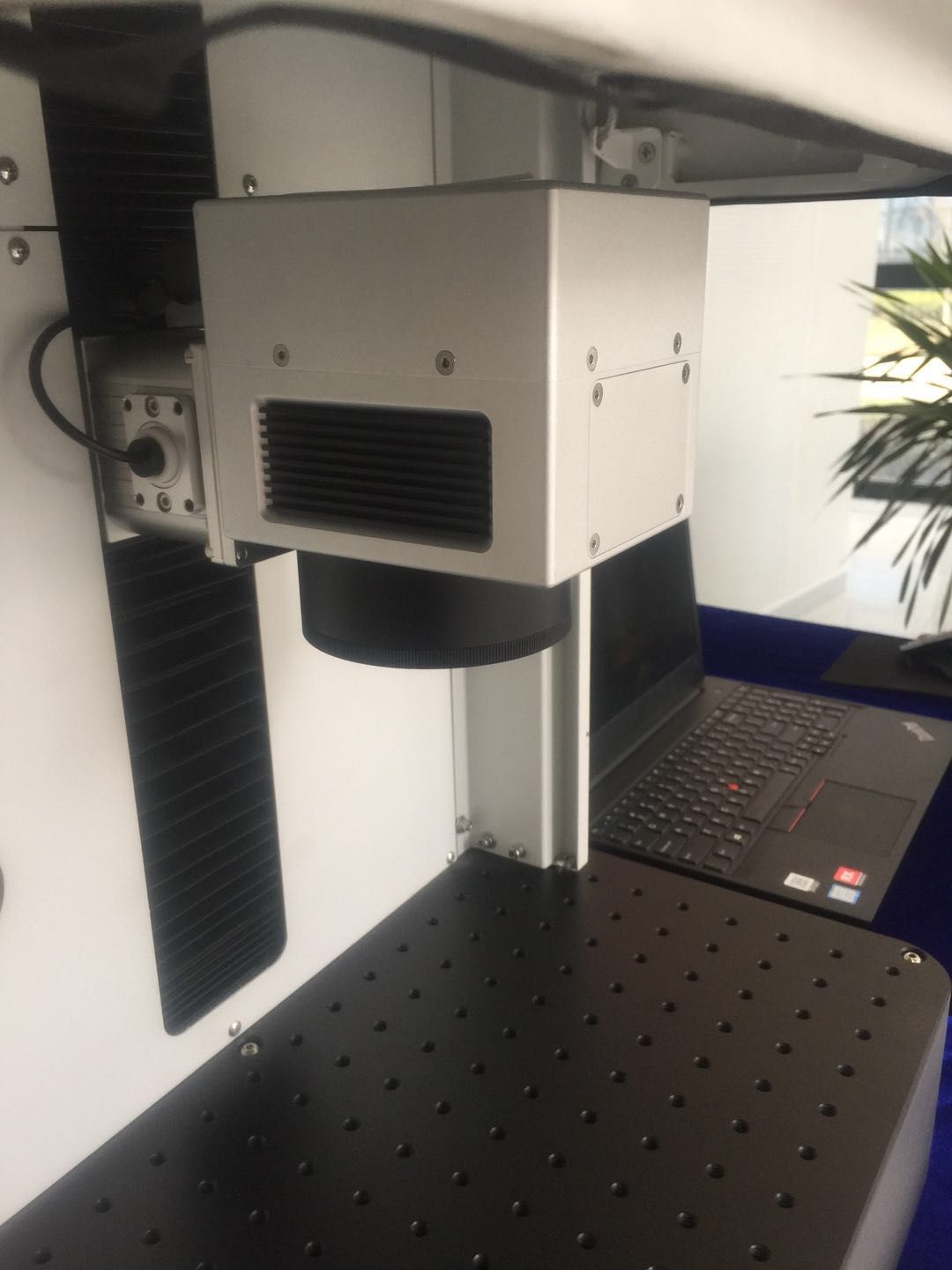

Totally-Closed Type with Observation Window; Easy and Safe Operation. Stepper Motor up and down. YDFLP-M7-M-R Laser Source.
SFX Laser Enclosed Fiber Laser Engraver Price Varies From $8799 to $15399
- Brand: SFX
- Product Code: SFX-GS-D-C
- Availability: In Stock
- Product Size:680 x 430 x 680 mm
- Weight: 75 kg
| Packing Size: | 835(L) x 565(W) x 900(H) mm |
| G.W / N.W: | 92 / 75 kg |
Product Parameters:
- Laser Source: 60W/80W/100W/120W YDFLP-M7-M-R JPT MOPA M7 (MOPA C Series)
- Marking Area: 70*70mm/110*110mm/150*150mm
- Max. Material Thickness: 300mm/250mm/206mm
- Repetition Rate(Frequency): 1-4000kHz
- Pulse Duration: 2-500ns(60W/80W/100W/120W)
- Maximum Pulse Energy: 2.0mj(60W/80W); 1.5mj(100W/120W)
- Software: EZCAD2(lightburn compatible)/EZCAD3. Support WIN7/8/10/11 System
- Output power adjustment range 10%-100%
- Marking Speed: 7m/s
- Engraving Depth:20W≤0.2mm(0.008in)/30W≤0.4mm(0.016in)/60W≤1.5mm
- Min. Line Width: ≤0.01mm（Depends on the material)
- Min. Character: 0.2mm（Depends on the material)
- Input Voltage: 110V-240V/50-60Hz
- Power Consumption: 500W/800W/1000W
- Communication Mode for Automation TCP/IP, IO,RS232
- Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF fonts.
Features and Advantages:
- Totally-Closed Type with Observation Window; Easy and Safe Operation, English User Manual, VCD training video, software sending together with the machine
- Applicable Material: Aluminum, Stainless Steel, Brass, Copper, Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES, etc.
- Free Shipping by DHL/UPS including Tariffs and Broke Fees around 7 to 10 days, No Import Duty for American Customers.
- 2 Years Warranty. After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Lifetime Online Technical Support.
| Product details | |
| Laser Source | JPT MOPA M7 |
| Marking Speed | 7m/s |
| Fiber Optical Length | 1064nm |
| Laser Power | 20W/30W/60W/80W/100W |
| Software | EZCAD2.0 |
| Adjustable Frequency Range | 1-4000kHz |
| Adjustable Pulse Width Range | 2-350ns@20W/30W; 2-500ns@60W/80W/100W |
| Lens(Marking Area) | 70*70mm/110*110mm/150*150mm |
| Engraving Depth | ≤2.0mm |
| Min. Character | 0.2mm |
| Min. Line Width | 0.01mm |
| Output power adjustment range | 10%-100% |
| Communication Mode for Automation | TCP/IP, IO,RS232 |
| Applicable OS | WIN7/8/10 |
| Input Voltage | 110V-240V/50-60Hz |
