Desktop 3W/5W/10W JPT UV Laser Marking Machine Laser Marker with built-in Computer and Software

Desktop 355nm UV Laser Marker Low-power laser beam, suitable for high-end market of ultra-fine processing.

$9,199.00

Have chosen:

*Laser Power
*Lens
Rotary Axis
Add to Cart

Add To Cart Successfully!

Desktop 3W/5W/10W JPT UV Laser Marking Machine Laser Marker with built-in Computer and Software
Desktop 3W/5W/10W JPT UV Laser Marking Machine Laser Marker with built-in Computer and Software
Desktop 3W/5W/10W JPT UV Laser Marking Machine Laser Marker with built-in Computer and Software

Desktop 3W/5W/10W JPT UV Laser Marking Machine Laser Marker with built-in Computer and Software

Desktop 355nm UV Laser Marker Low-power laser beam, suitable for high-end market of ultra-fine processing.

Price:
  • Brand:LYXC
  • Product Code:SFX-UV
  • Availability: In Stock
  • Product Size:720 x 750 x 1400 mm

Tags:UV Laser Marker,UV Laser Engraving Machine,3W UV Laser Marker,5W UV Laser Marker,355nm UV Laser

Packing Size:    870(L) x 790(W) x 1130(H) mm
G.W / N.W:155 / 110 kg
5% OFFOrder more than $0.00Get Coupon
  • 5% OFF
    Order more than $0.00
    2024-04-16 - 2024-05-01
    Get Coupon
  • 5% OFF
    Order more than $0.002024-04-16 - 2024-05-01
    Get Coupon
  • Please input email:
Laser Power*
Lens*
Rotary Axis

In Stock  18

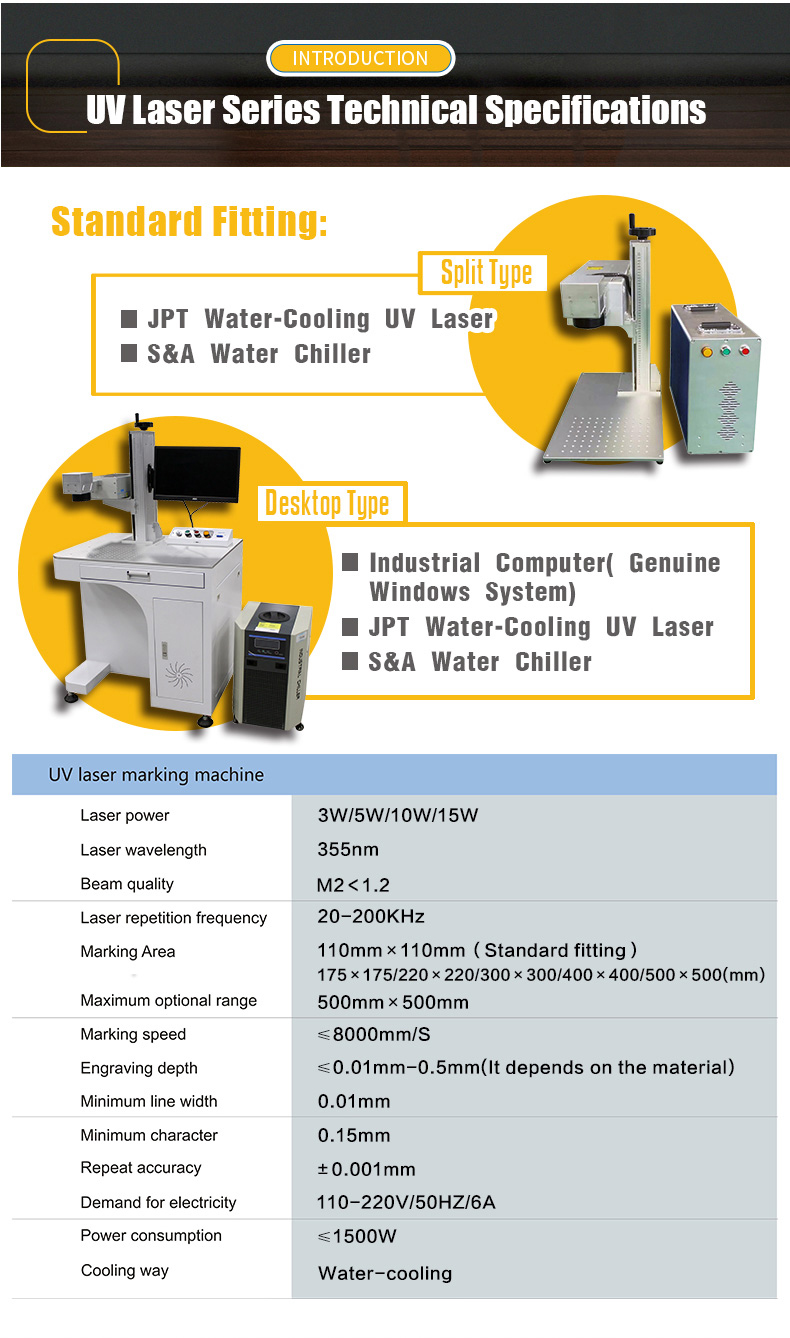

Technical Paramters:

  • Laser Power: 3W/5W/10W
  • Laser Wavelength: 355nm
  • Beam Quality: M2<1.2
  • Marking Area: 110*110mm/150*150mm/175*175mm/220*220mm/300*300mm
  • Laster Source: JPT Seal-355-3/JPT Seal-355-5/JPT Seal-355-10
  • Laser Repetition Frequency : 20-200kHz
  • Pulse Duration: <10ns@60kHz
  • Output power adjustment range 10%-100%
  • Marking Speed: 8000mm/s
  • Engraving Depth:≤0.01-0.5mm (Depends on the material)
  • Min. Line Width: ≤0.01mm
  • Min. Character: 0.15mm
  • Repeat Accuracy: ±0.001mm
  • Input Voltage: 110V-240V/50-60Hz
  • Complete Power Consumption: ≤1500W
  • Cooling Way: S&A Water-cooling



Application Advantages:

  • Suitable for various material and catagory like 3C, LED Lineation, Silcon Processing.
  • High Quality Beam, focusing spot is smaller, that can achieve hyper fine marking
  • Thermal impact area is very small, will not produce thermal effect, will not produce material burning problem
  • Fast marking speed and high efficiency.
  • Stable performance, small size, low power consumption.
  • The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
  • Applicable Material: Cosmetics, Drugs, Food and other Macro-molecule material packaging surface, Flexible PCB, LCD Glass QR Code, Metal Surface Coating, Plastic Keys, Electronic Componentsm Gifts, Communication Equipment, Construction Materials, etc
  • 1 Year warranty. Free shipping by air about 7-15 days, no import duty for American customers.
  • After sales center in NY, US. Offer remote assistance for operation issues. Lifetime online technical support.

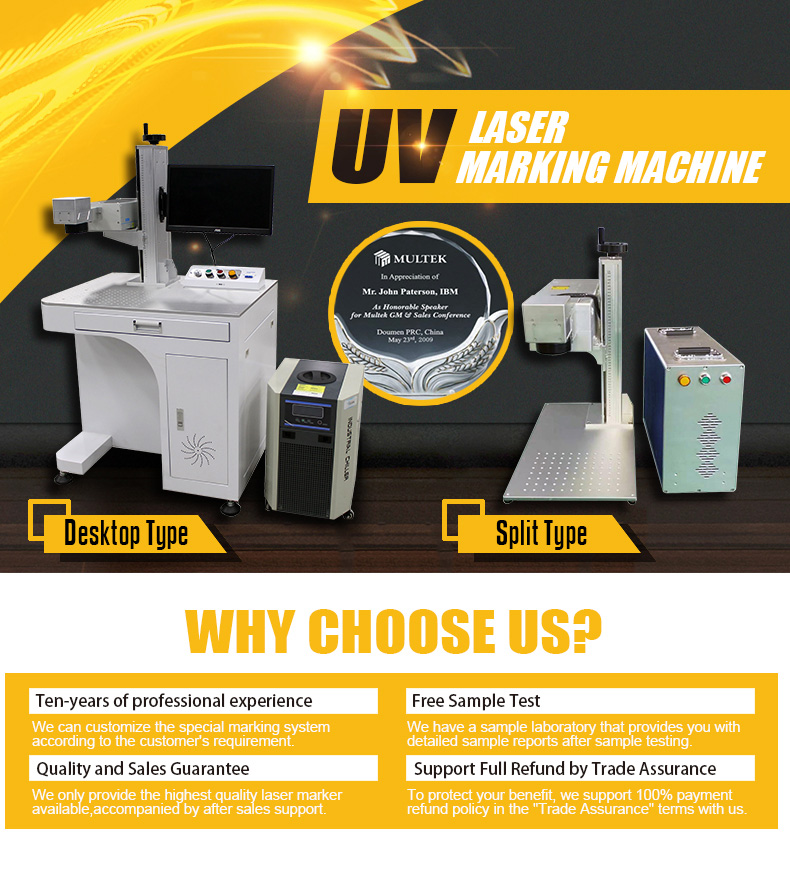

  • We also have split type UV laser marking machine for optional.

Product details
Beam QualityM2<1.2
Cooling WayWater Cooling
Engraving Depth0.01mm-0.5mm
Laser Repetition Frequency20-200KHz
Laser Wavelength355nm
Marking Area110*110mm/150*150mm/175*175mm/220*220mm/300*300mm/400*400mm/500*500mm
Marking Speed8m/s
Power Consumption1500W
Power Supply110V, 60Hz/220V, 50Hz
Repeat Accuracy±0.001mm
Laser Power3W/5W/10W/15W
Min. Character0.15mm
Min. Line Width0.01mm
