PFLC-3030 1000W 1500W Fully Enclosed Precision Fiber Laser Cutting Machine with 300*300mm Working Area
Auto Focus Fully Enclosed Precision Fiber Laser Cutting Machine with 300*300mm Working Area. CE Certificate.
- Product Code:PFLC-3030
- Availability: In Stock
- Product Size:1.55 x 1.54 x 1.95 m
- Weight:850 kg
In Stock 20

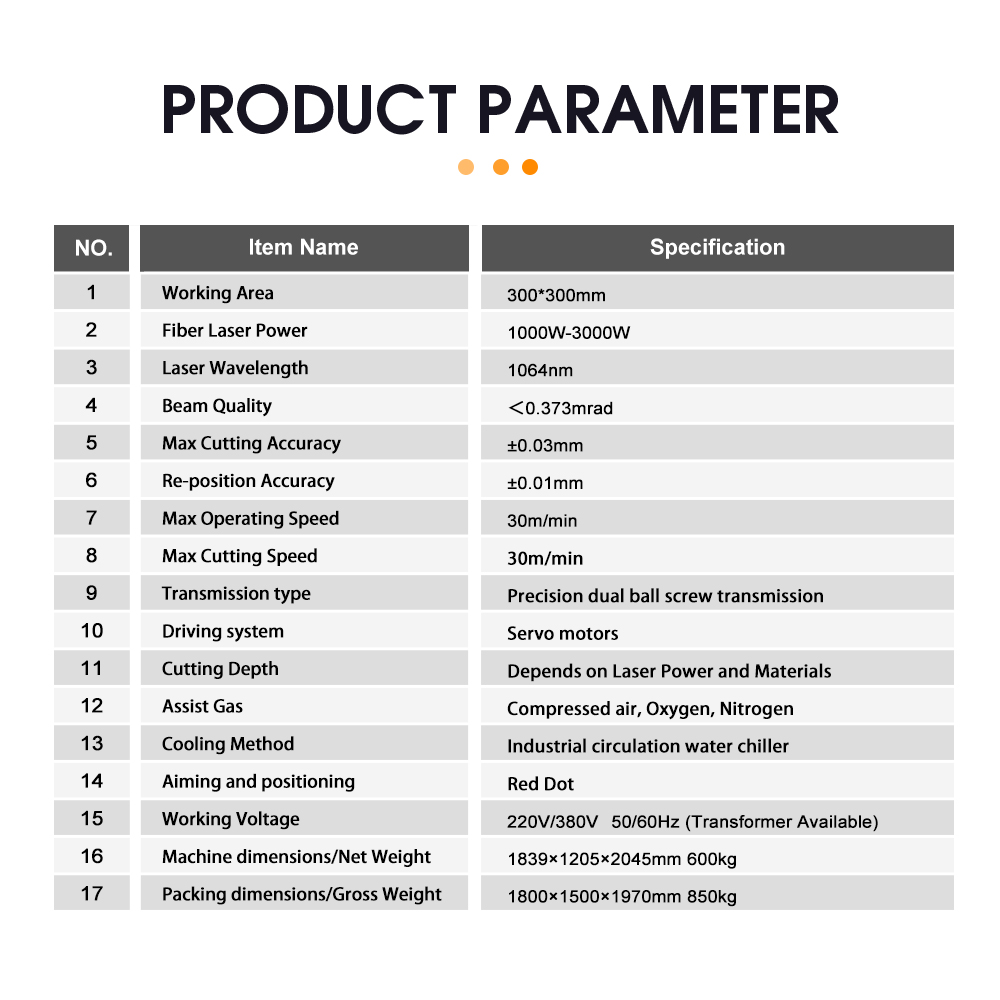

- Model: PFLC-3030
- Working Area: 300*300mm
- Fiber Laser Power: 1000W/1500W
- Laser Wavelength: 1064nm
- Beam Quality: <0.373mrad
- Max Cutting Accuracy: ±0.03mm
- Re-position Accuracy: ±0.01mm
- Max Operating Speed: 30m/min
- Max Cutting Speed: 30m/min
- Transmission Type: Precision Dual Ball Screw Transmission
- Driving System: Servo Motors
- Cutting Depth: Depends on Laser Power and Materials
- Assist Gas: Compressed Air, Oxygen, Nitrogen
- Cooling Method: Industrial Circulation Water Chiller
- Aiming and Positioning: Red Dot
- Working Voltage: 220V/380V 50/60Hz (Transformer Available)
- Machine Dimensions/Net Weight: 890*850*1830mm 600kg
- Packing Dimensions/Gross Weight: 1550*1540*1950mm 850kg
- Ultra-high precision linear motor module; Compact structure & lower loss; High position accuracy and re-positioning accuracy.
- Higher speed and acceleration; Excellent follow-up performance; Safe, reliale, long service life.

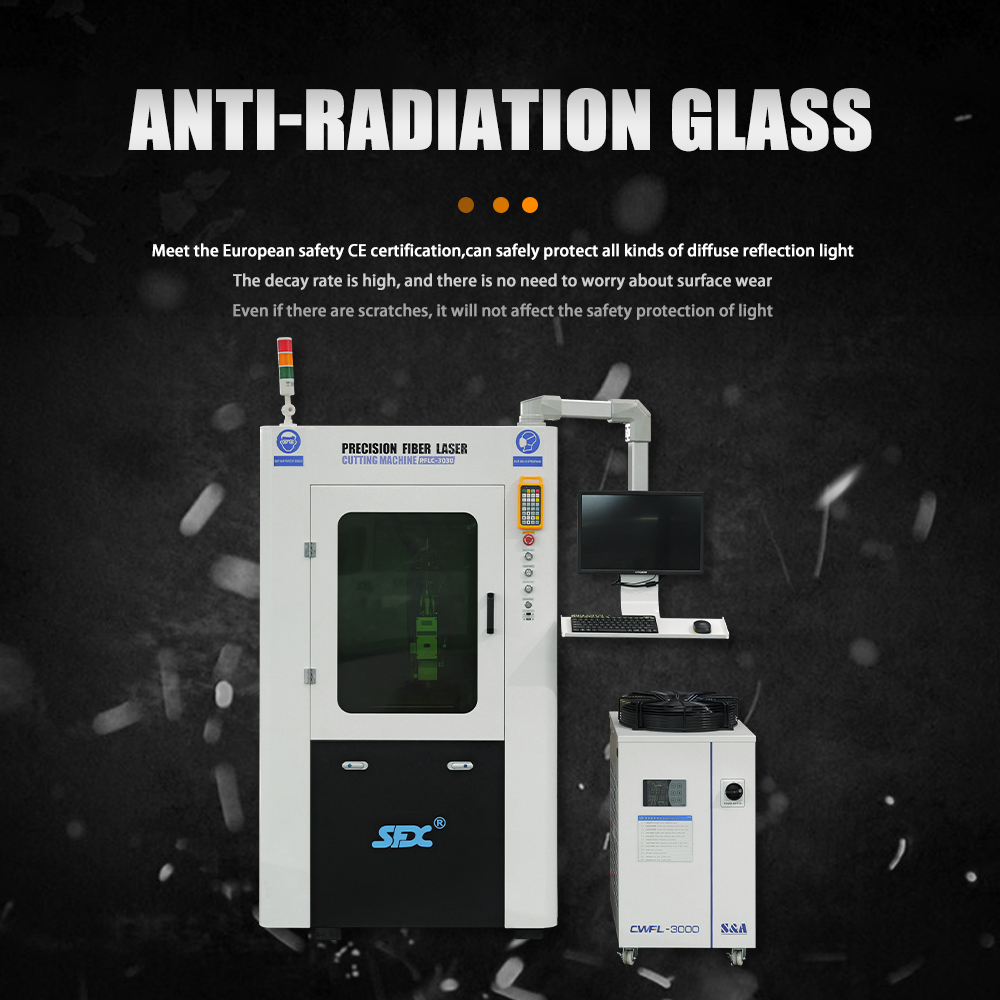

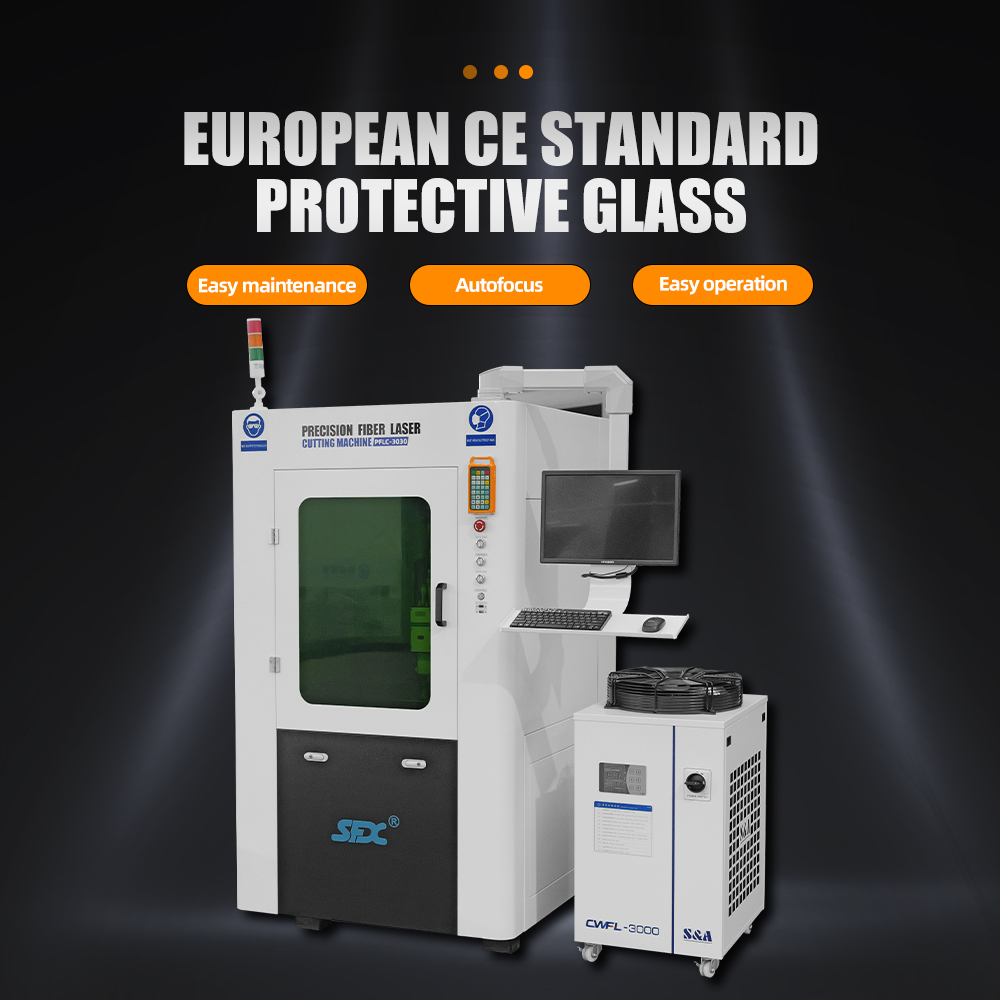

- European CE Standard Anti-radiation Protective Glass. MAX Laser Source. Autofocus Function.
- Cypone/Cypcut Software System. Stable Performance, Simple Operation, Simple Field Drawing can be Performed. Supporting Files: DXF, PLT, AI, LXD, etc.
- Raytools Cutting Head. Z-axis Follow-up Function. Stable and Fast Automatic Adjustment of Cutting Height. Suitable for Lenses with Multiple Focal Lengths.

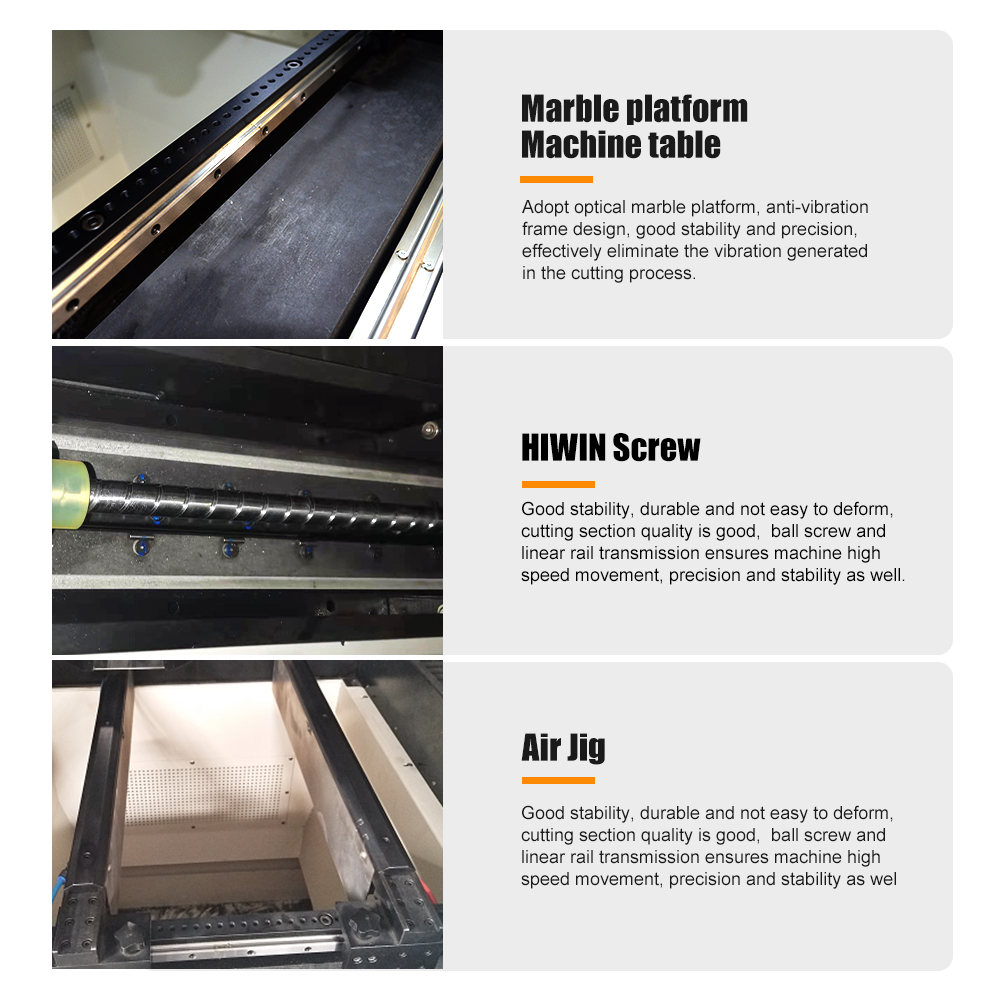

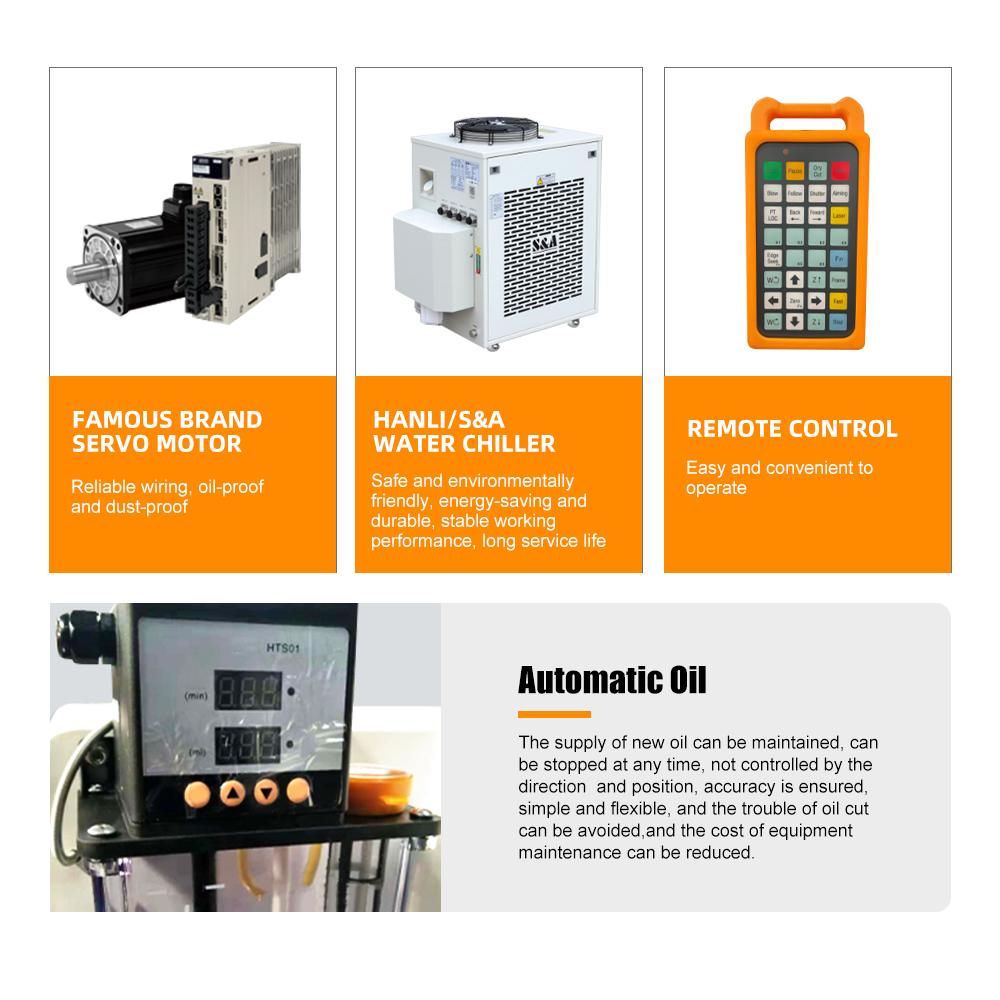

- Famous Brand Servo Motor. Hanli/S&A Water Chiller. Remote Control. Automatic Oil. Marble Platform Machine Table. Hiwin Screw.

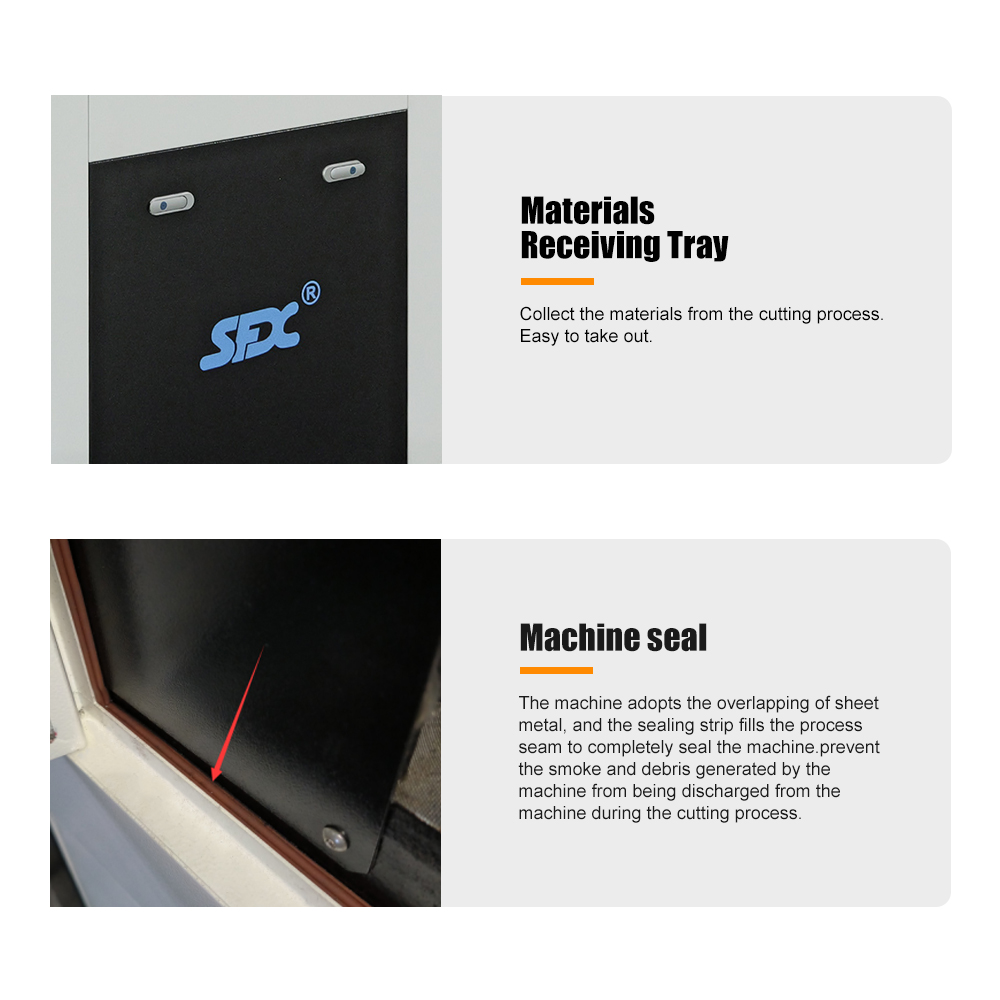

- Materials Receiving Tray for Collect the Materials from the Cutting Process. Easy to Take Out.
- Machine Seal. As a Precious Metal Precision Cutting Machine, the Machine is Fully Enclosed to prevent the Smoke and Debris Generated by the Machine from Being Discharged from the Machine During the Cutting Process.
- Financial installment assistance can be provided as a solution to US customer's financial problems.
- Our local technical support in USA can solve customer's after-sales problems faster and more professionally.
- We provide free sample processing service, which can cut according to the customer's drawing and provide video.
- We can customize the configuration of the machine according to the customer's requirements and design the most suitable machine for customers.
- After the production of the customer's machine is completed we will provide pictures and trial processing video. We will only arrange transportation after the customer is satisfied. After the machine is delivered we will also provide customers online one-on-one guidance to install and operate the machine.
Application and Delivery:
- Machine is Suitable for Ultra Precision Cutting, such as Carbon Steel, Stainless Steel, Galvanized Sheet, Aluminum Alloy, Titanium Alloy, Gold, Silver, Aluminum, Brass, Copper and Tight Sheet Metal Fittings, etc.
- 1 Year Warranty for the Whole Machine, 2 Years Warranty for the Laser Source. Factory Direct Sale, Offer Customer and Technical Support.
- Free Shipping by Sea&Truck to Door Around 60 to 70 Days. No Import Duty for American Customers.
|Aiming and Positioning||Red Dot|
|Assist Gas||Compressed Air, Oxygen, Nitrogen|
|Cooling Method||Industrial Circulation Water Chiller|
|Cutting Depth||Depends on Laser Power and Materials|
|Driving System||Servo Motors|
|Fiber Laser Power||1000W/1500W|
|Machine Dimensions/Net Weight||890*850*1830mm 600kg|
|Max Cutting Accuracy||±0.03mm|
|Max Cutting Speed||30m/min|
|Max Operating Speed||30m/min|
|Packing Dimensions/Gross Weight||1550*1540*1950mm 850kg|
|Transmission Type||Precision Dual Ball Screw Transmission|
|Working Voltage||220V/380V 50/60Hz (Transformer Available)|
