1000W 1500W 2000W 3000W Platform Automatic Laser Welding Machine Thin Metal Plate Laser Welder
- Product Code: DLW-1000-VI, DLW-1500-VI, DLW-2000-VI, DLW-3000-VI
- Availability: In Stock
In Stock 50
- Model:DLW-1000-VI, DLW-1500-VI, DLW-2000-VI, DLW-3000-VI
- Laser Power:1000W, 1500W, 2000W, 3000W
- XYZ Stroke:800*300*300mm(Customizable)
- Laser Wavelength:1080±5nm
- Spot Shape:Ring(Optional multi-graphics)
- Spot Size:0-5mm
- Input Power:AC220V±15% 50/60Hz AC380V±15% 50/60Hz(3000W)
- Cooling Method:External Chiller
Features and Advantages:
- Intelligent Design, fully automatic welding meet your various needs.
- Beautiful weld seam, firm and fast. Less polishing and grinding, better work efficiency.
- Maintenance free. Modular desgin for the whole machine, stable performance.
- Easy to operate. Simple operation, low cost and low requirements for workers.
- Wide application. Wide range of applications, high precision, fast
- High power. High aspect ratio of the weld seam, small heat-affected area, small deformation, fast welding speed.
- Long service life. Newly laser technology. The service life can reach more than tens of thoousands of hours.

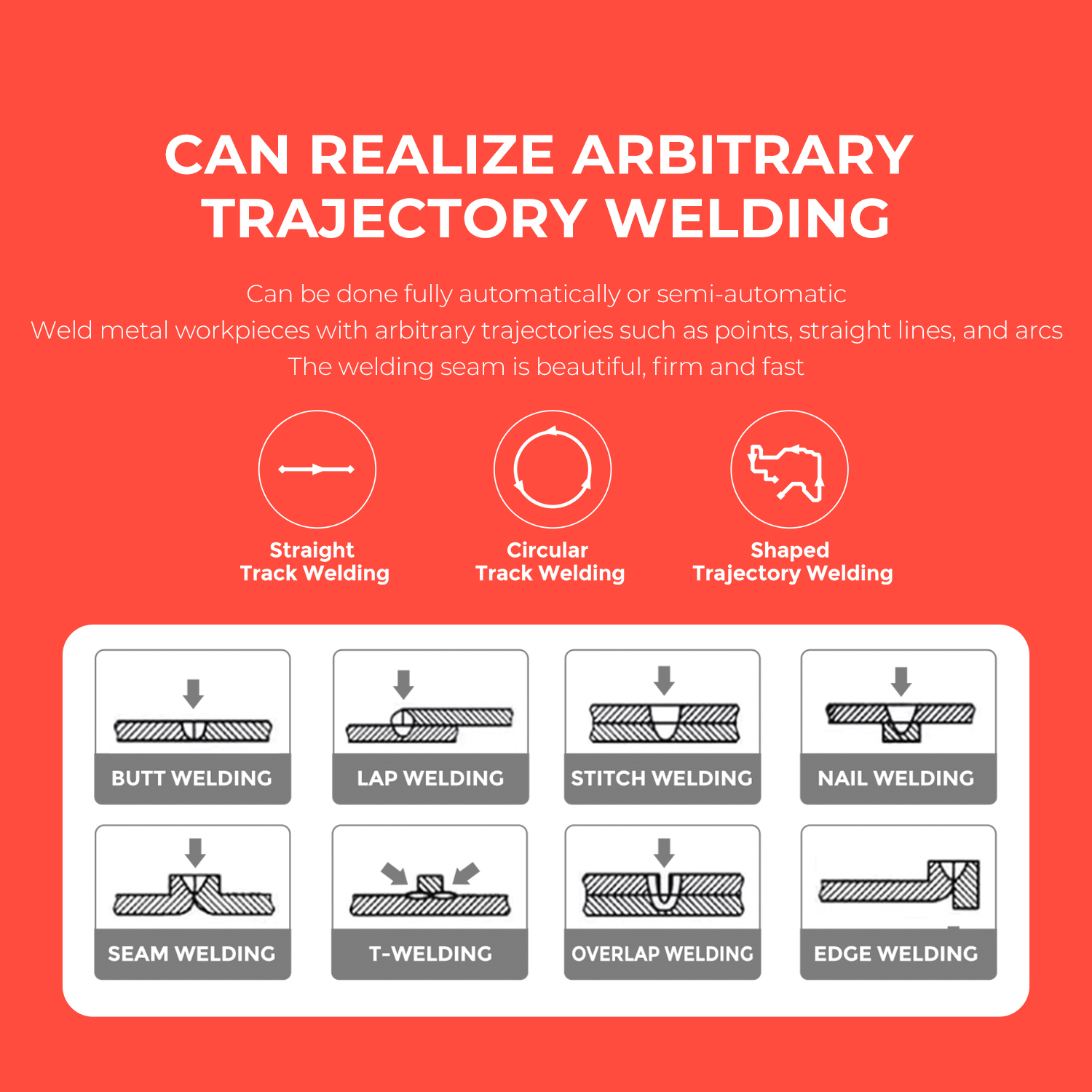

- Can realize arbitrary trajectory welding, Can be done fully automatically or semi-automatic Weld metal workpieces with arbitrary trajectories such as points, straight lines, and arcs.

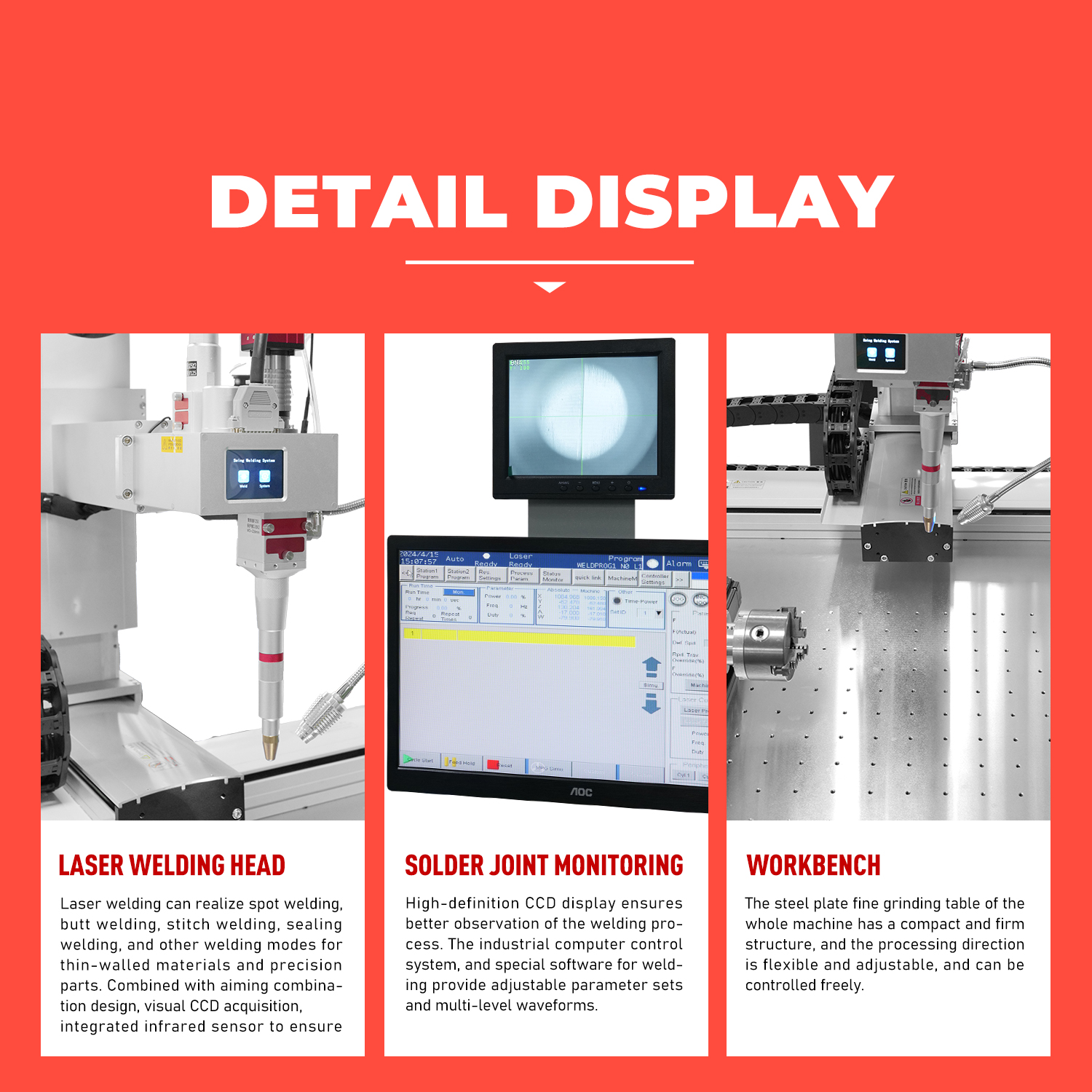

- Laser welding can realize spot welding, butt welding, stitch welding, sealing welding, and otherwelding modes for thin-walled materials and precision parts. Combined with aiming combination desgin, visual CCD acquisition, integrated infrared sensor to ensure accurate positioning.

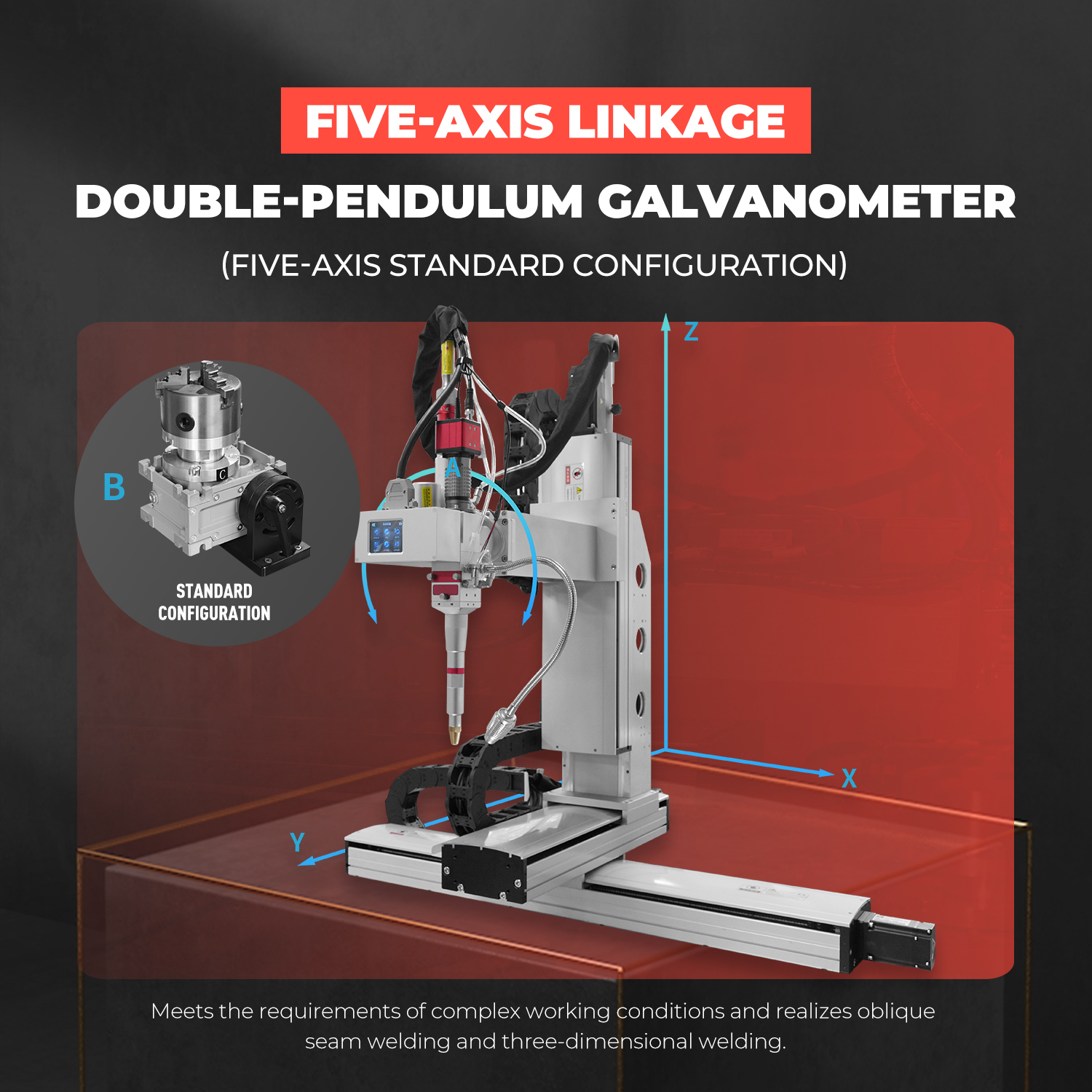

- Multi-Axis Servo Welding Table. High positioning accuracy, sensitive response, shockproof design, no need to move the product manually, automatic movement for welding.
- Solder Joint Monitoring. High-definition CCD display ensures better observation of the welding process. The industrial computer control system, and special software for welding provide adjustable parameter sets and multi-level waveforms.
- Workbench. The steel plate fine grinding table of the whole machine has a compact and firm structure, and the processing direction is flexible and adjustable, and can be controlled freely.
Application and Warranty:
- Applicable Materials: Stainless steel, die steel, nickel, zinc, aluminum. Especially in thin plate welding has obvious advantages.
- Applicable Field: Widely used in aerospace equipement, shipbuilding, instrumentation, mechanical and electrical products, automobile manufacturing and other industries.
- One year for the whole machine, two years warranty for the laser source.
- Offer Remote Assistance. Free Shipping by Sea, No Import Duty for American Customers.
|Cooling Method||External Chiller|
|Input Power||AC220V±15% 50/60Hz AC380V±15% 50/60Hz(3000W)|
|Laser Power||1000W, 1500W, 2000W, 3000W|
|Model||DLW-1000-VI, DLW-1500-VI, DLW-2000-VI, DLW-3000-VI|
|Spot Shape||Ring(Optional multi-graphics)|
