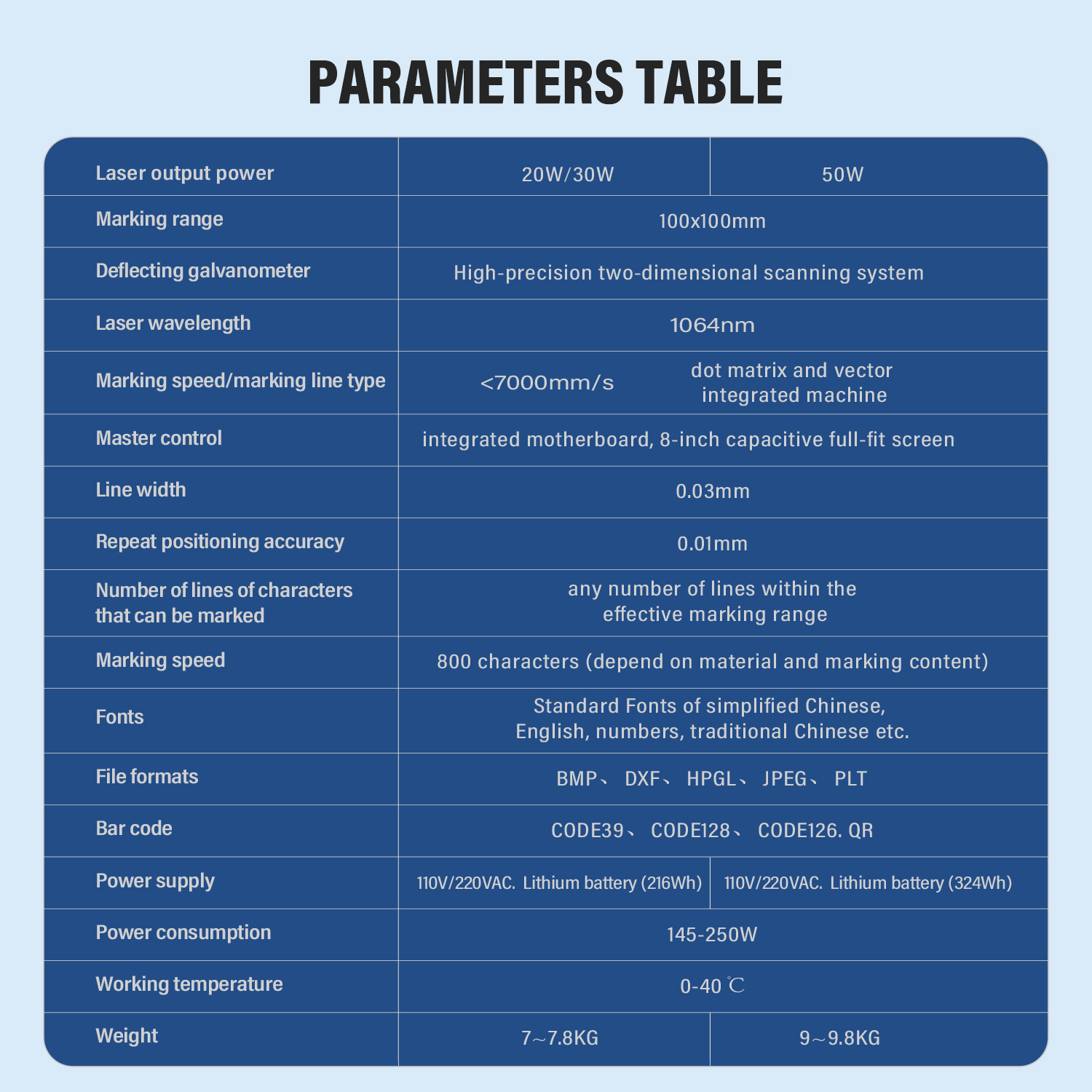

Technical Parameters

• Laser Output Power: 20W, 30W, 50W
• Marking Range: 100*100mm
• Deflecting Galvanometer: High precision two-dimensional scanning system
• Marking Speed/Marking Line Type: <7000mm/s, dot matrix and vector integrated machine
• Line Width: 0.03mm
• Repeat Positioning Accuracy: 0.01mm
• Number of Lines of Characters that Can Be Marked: Any number of lines within the effective marking range
• Marking Speed: 800 characters (depending on material and marking content)
• Fonts: Standard fonts of simplified Chinese, English, numbers, traditional Chinese, etc.
• File Formats: BMP, DXF, HPGL, JPEG, PLT
• Barcodes: CODE39, CODE128, CODE126, QR
• Power Supply: 110V/220VAC, Lithium battery (216Wh/324Wh)
• Power Consumption: 145-250W
• Working Temperature: 0-40°C
• Weight: 7.0-7.8kg (20W/30W), 9.0-9.8kg (50W)

Features and Advantages：

• Compact, Lightweight and Portable: This handheld laser marking machine is designed for maximum portability, with a total weight of 7.0-9.8kg. Gun head 1.3kg (electromagnetic model 2kg).
• Long Battery Life: Built-in lithium battery with a capacity of 216Wh/324Wh, providing a battery life of up to 4 hours for outdoor marking applications.
• Flexible Dual Power Supply: plug-in mode with external power supply (110V/220V) or rechargeable built-in lithium battery, suitable for various work environments.
• Safety and Precision: Equipped with an OD4+ laser protective cover, built-in fan & illumination, and an infrared positioning system for high-precision marking.
• Magnetic Force Option: The electromagnetic model provides 80KG of magnetic force, freeing your hands during operation.
• User-Friendly Interface: Features an 8-inch color touchscreen with a simple, easy-to-learn interface, and various format editing options.
• Multi-Language Support: Available in English, Japanese, Korean, Russian, Arabic, and more, enabling global usage.
• Advanced Technology: Powered by a Linux system with an 8-core processor, ensuring high security, stable performance, and fast response times.

Applications and Service

• Wide Material Compatibility: Ideal for marking a variety of materials, including: Metal: Gold, silver, copper, steel, etc. Non-metallic: Paper, plastic, glass, leather, etc.
• Ideal for Personalized Marking: Perfect for applications such as trademarks, barcodes, and more, with precise, high-quality marking results.
• Versatile Marking Options: Suitable for a wide range of marking types, including logos, serial numbers, text, QR codes, and barcodes, supporting various file formats (BMP, DXF, HPGL, JPEG, PLT).
• High-Speed Performance: With a marking speed of up to 7000mm/s, the machine can efficiently handle large-scale marking tasks with precision.
• Quality Assurance: The product is backed by reliable after-sales service, ensuring seamless operations and offering support for all technical inquiries.
• Portable and Convenient for Outdoor Use: The dual power supply system and long battery life make this laser marking machine highly suitable for on-site, outdoor applications
