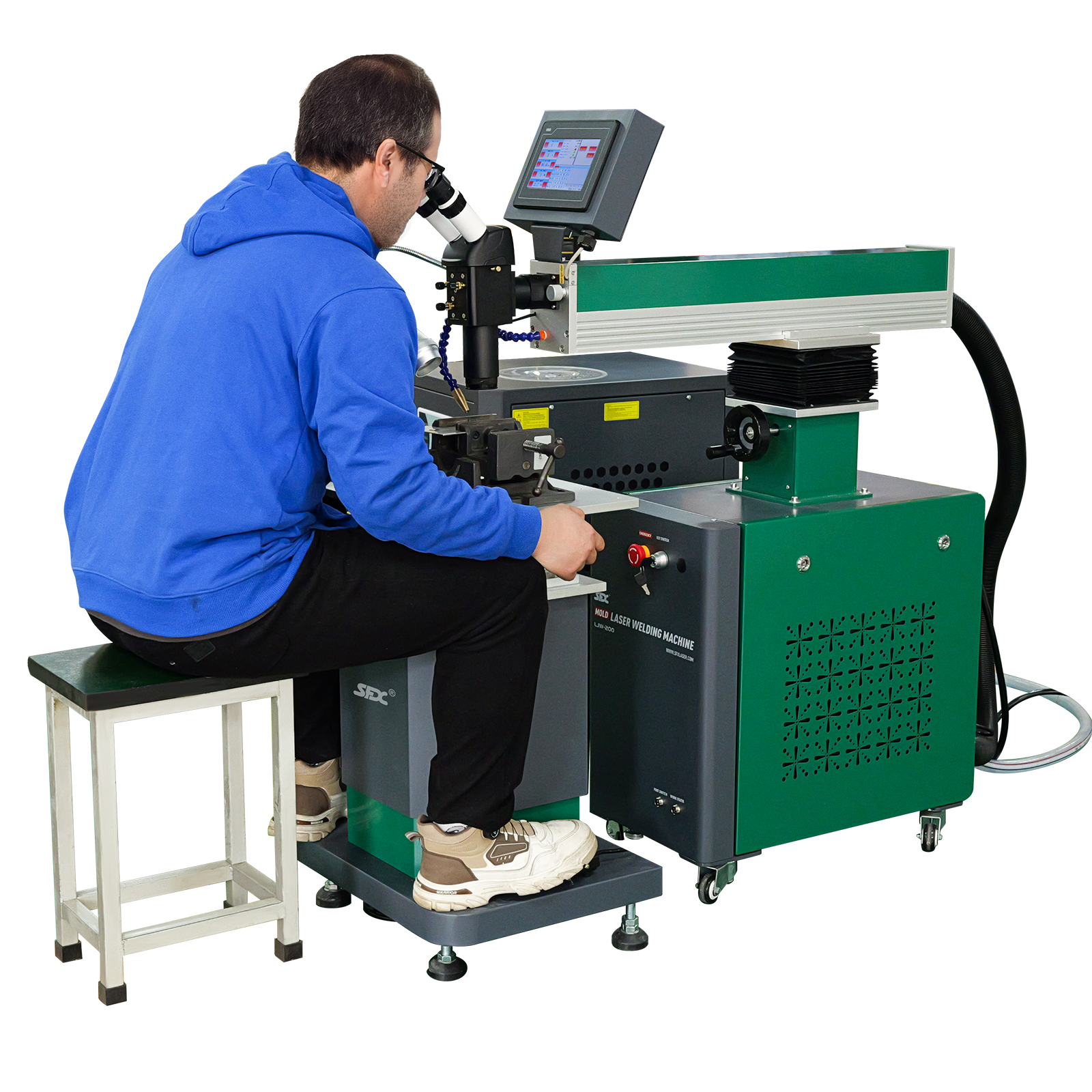

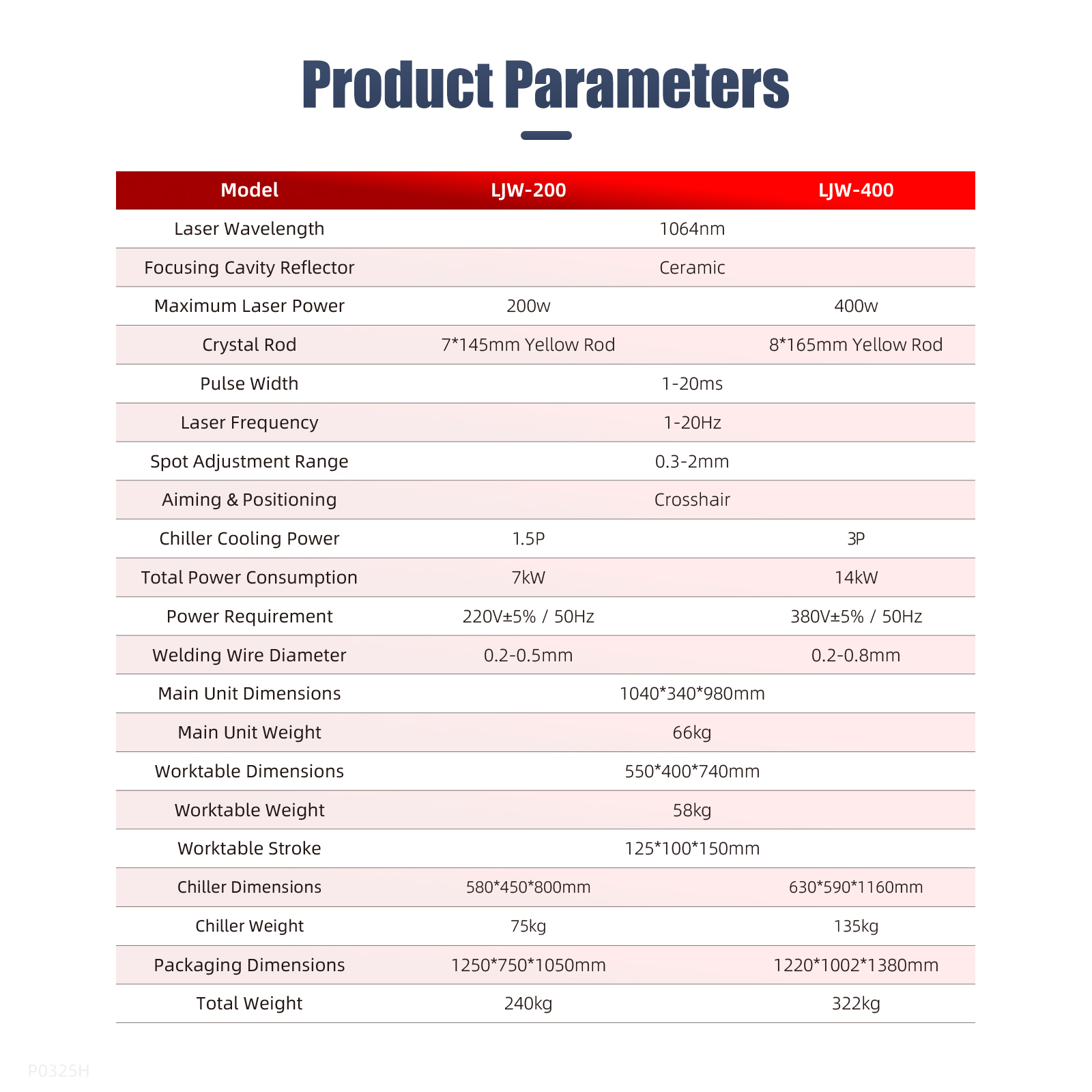

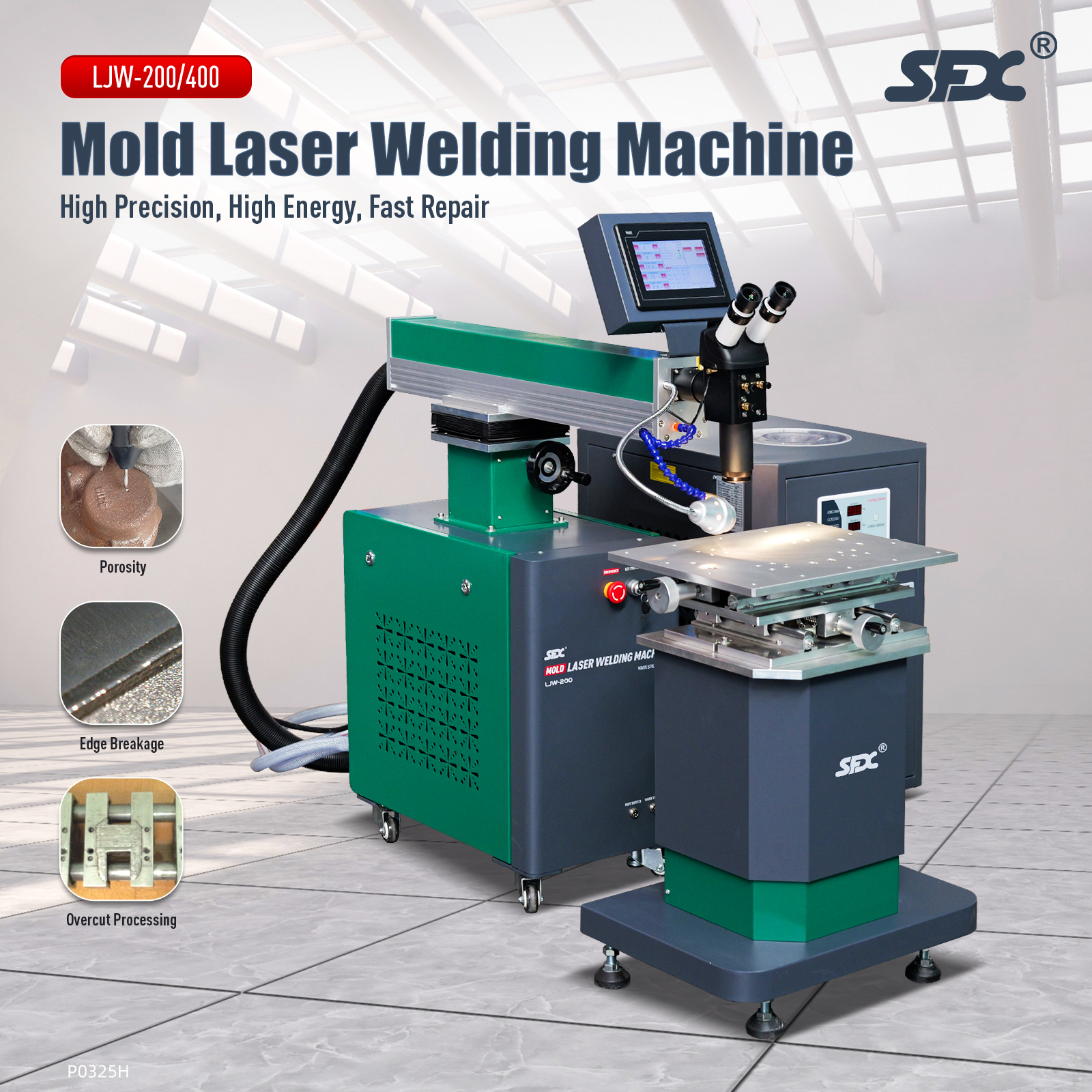

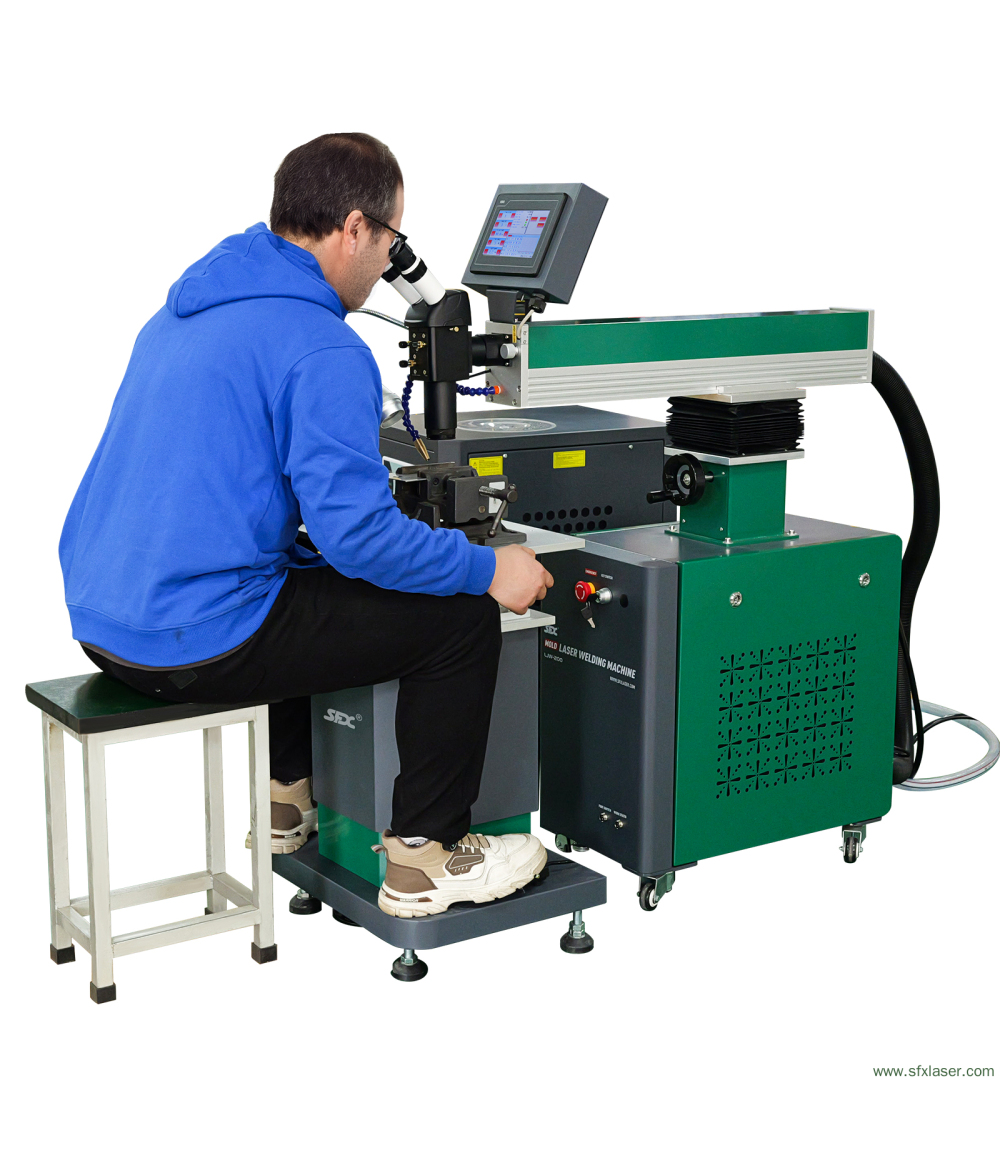

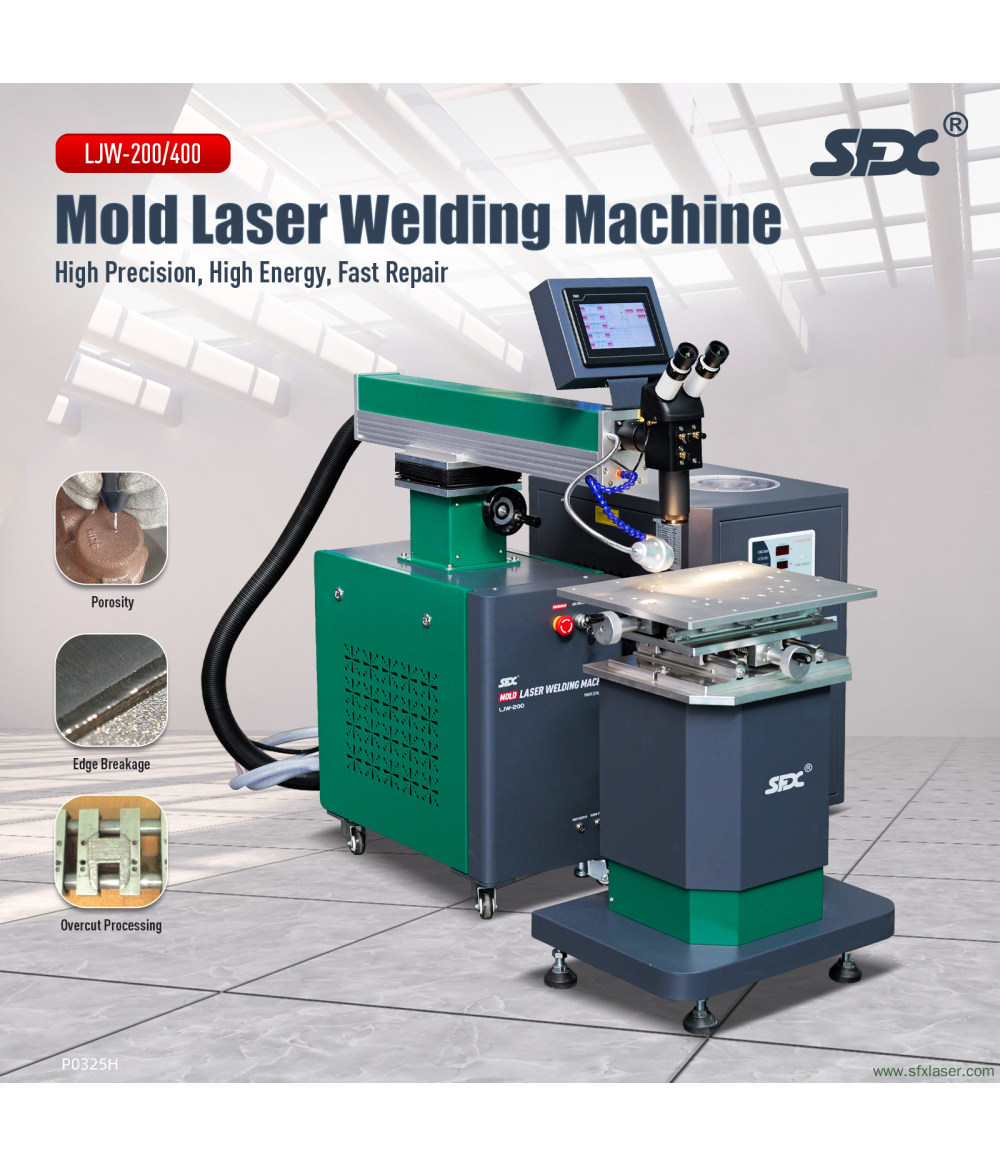

SFX Laser Mold Welding Machine Product Parameters

• Model: LJW-200 LJW-400
• Laser Wavelength: 1064nm
• Focusing Cavity Reflector: Ceramic
• Maximum Laser Power: 200w / 400w
• Crystal Rod: 7*145mm Yellow Rod / 8*165mm Yellow Rod
• Pulse Width: 1-20ms
• Laser Frequency: 1-20Hz
• Spot Adjustment Range: 0.3-2mm
• Aiming & Positioning: Crosshair
• Chiller Cooling Power: 1.5P / 3P
• Total Power Consumption: 7kW / 14kW
• Power Requirement: 220V±5% / 50Hz / 380V±5% / 50Hz
• Welding Wire Diameter: 0.2-0.5mm / 0.2-0.8mm
• Main Unit Dimensions: 1040*340*980mm
• Main Unit Weight: 66kg
• Worktable Dimensions: 550*400*740mm
• Worktable Weight: 58kg
• Worktable Stroke: 125*100*150mm
• Chiller Dimensions: 580*450*800mm / 630*590*1160mm
• Chiller Weight: 75kg / 135kg
• Packaging Dimensions: 1250*750*1050mm / 1220*1002*1380mm
• Total Weight: 240kg / 322kg

Advantages and Features

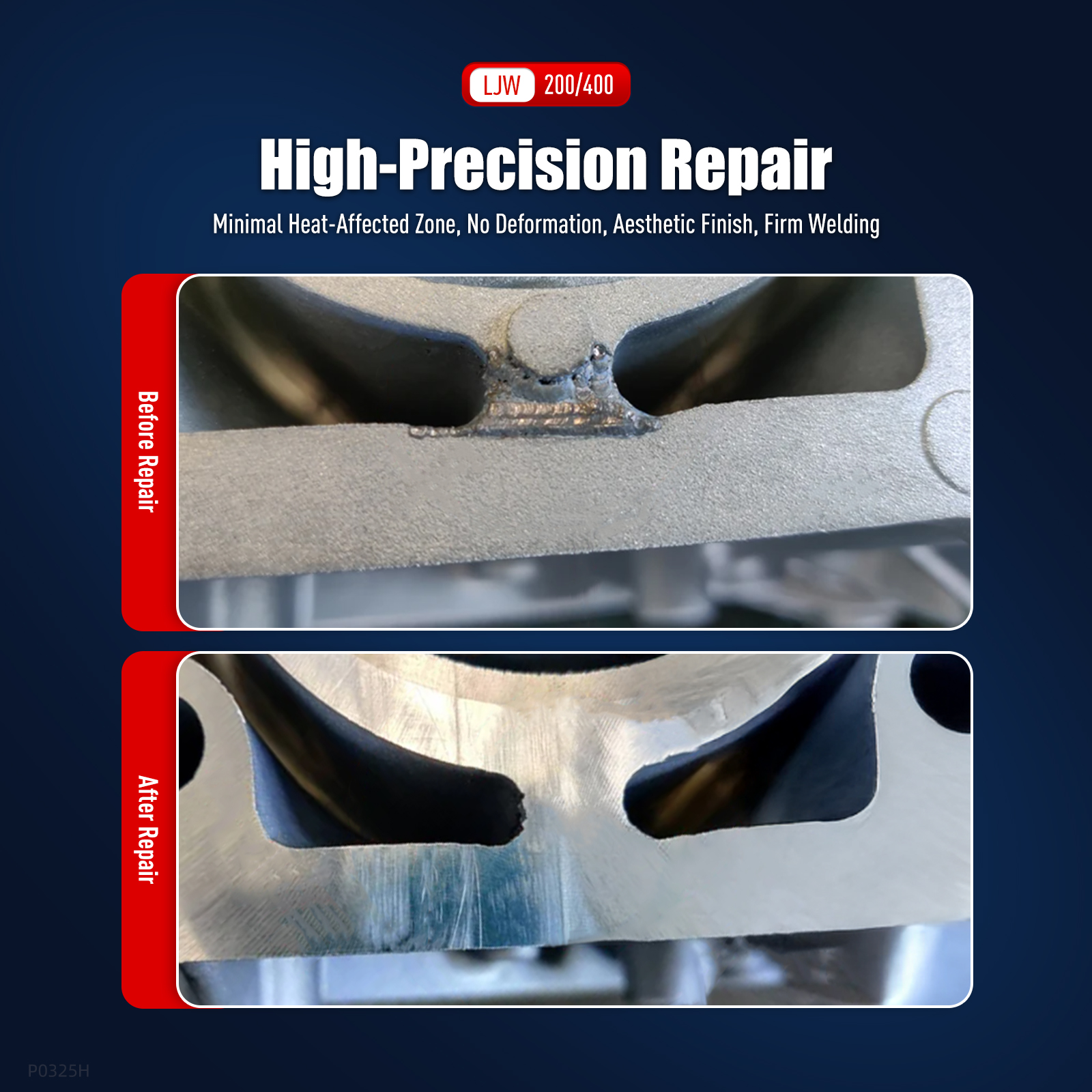

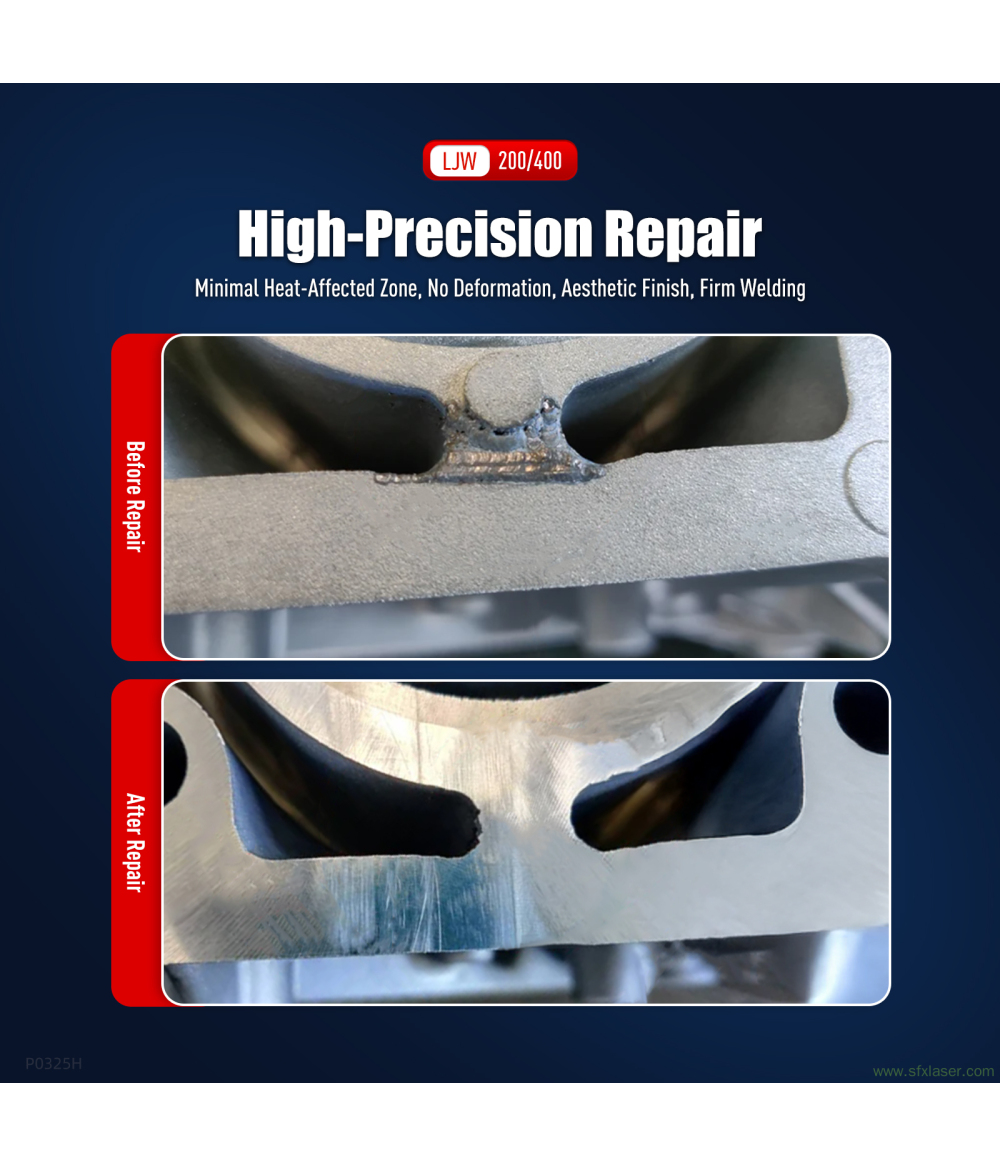

• High Precision Repair: Minimal heat-affected zone, no deformation, ensuring a smooth and strong weld.

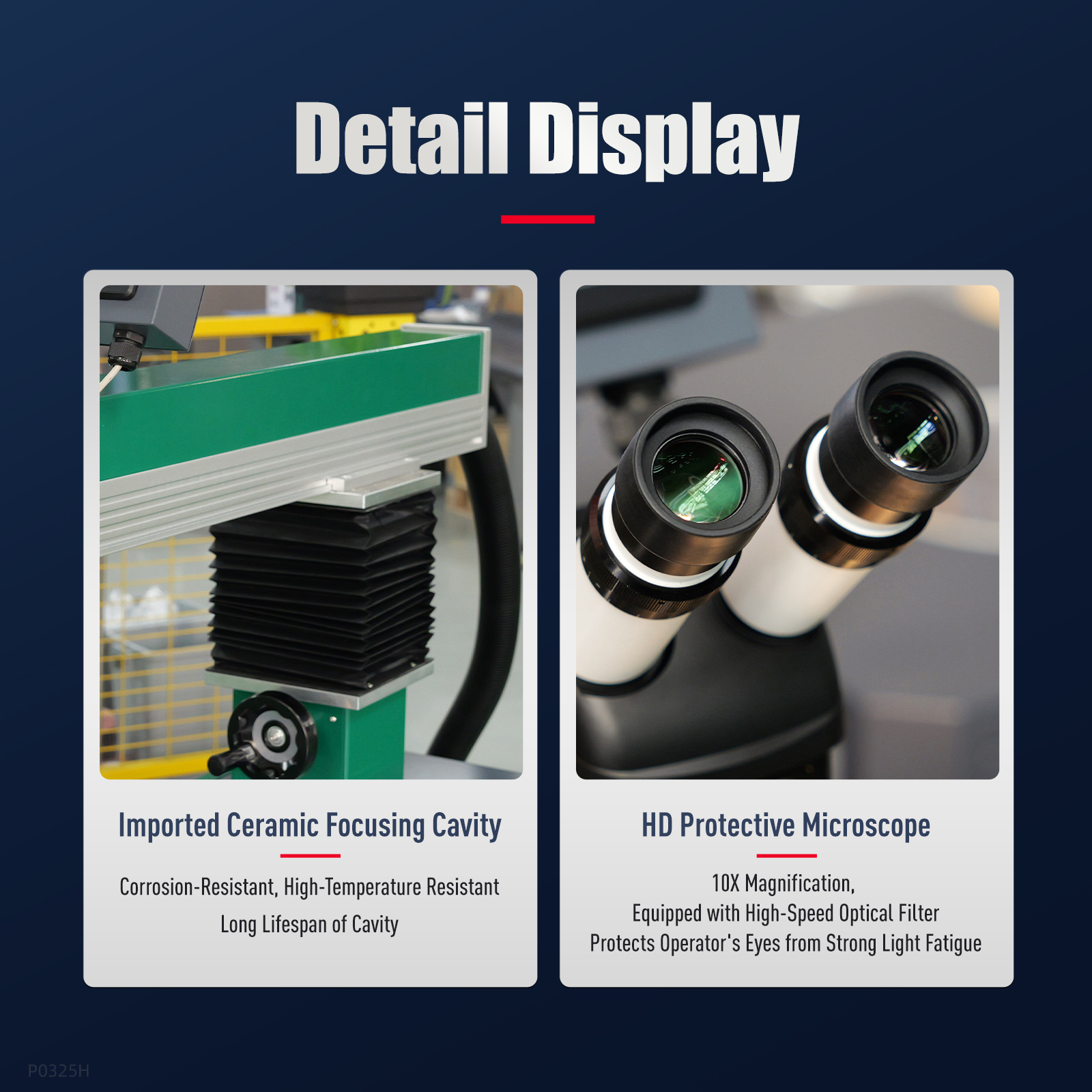

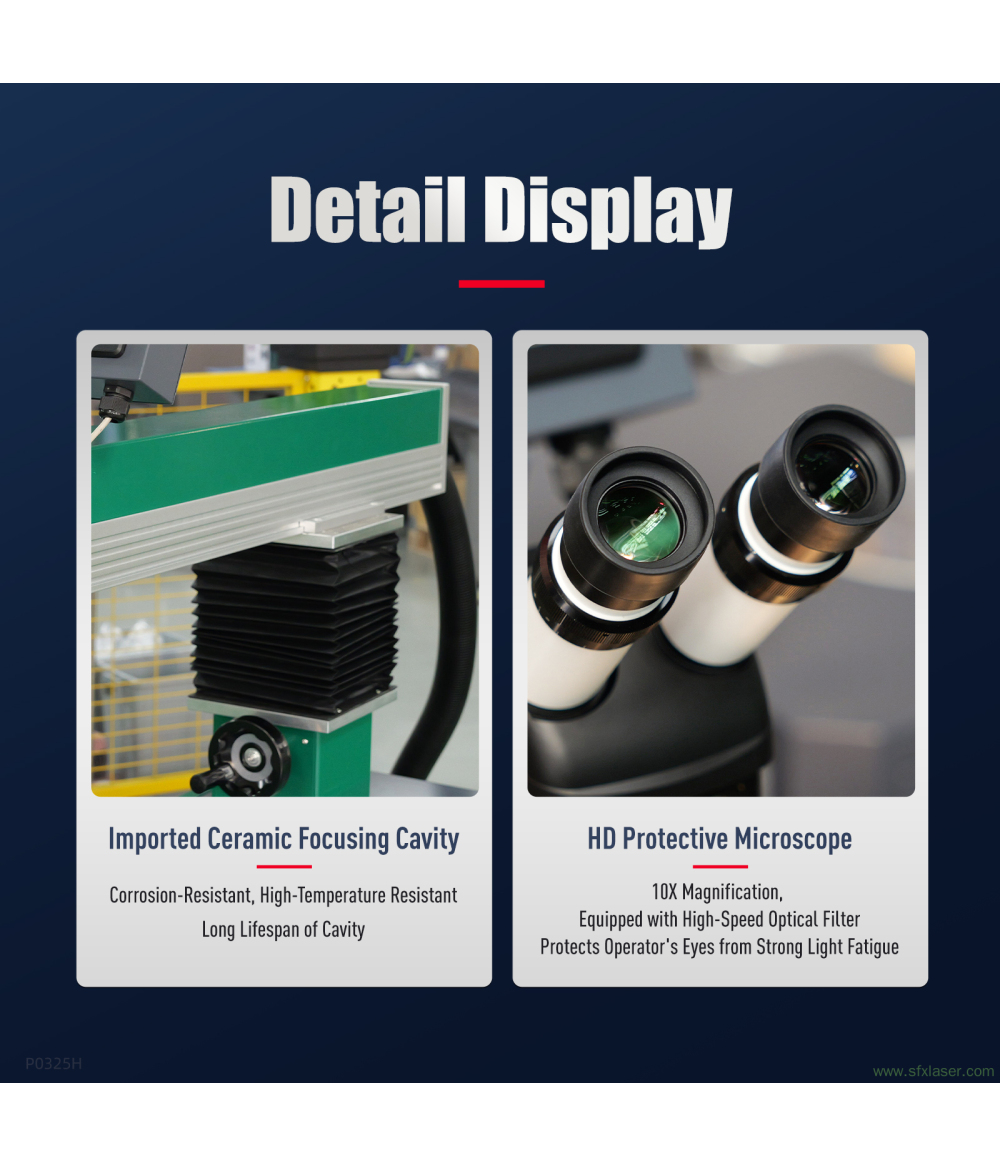

• Long Lifespan: Imported ceramic focusing cavity, corrosion-resistant, high-temperature resistant, and long-lasting.
• 15 Preset Parameters: The system supports 15 preset parameters for easy operation and one-click recall.

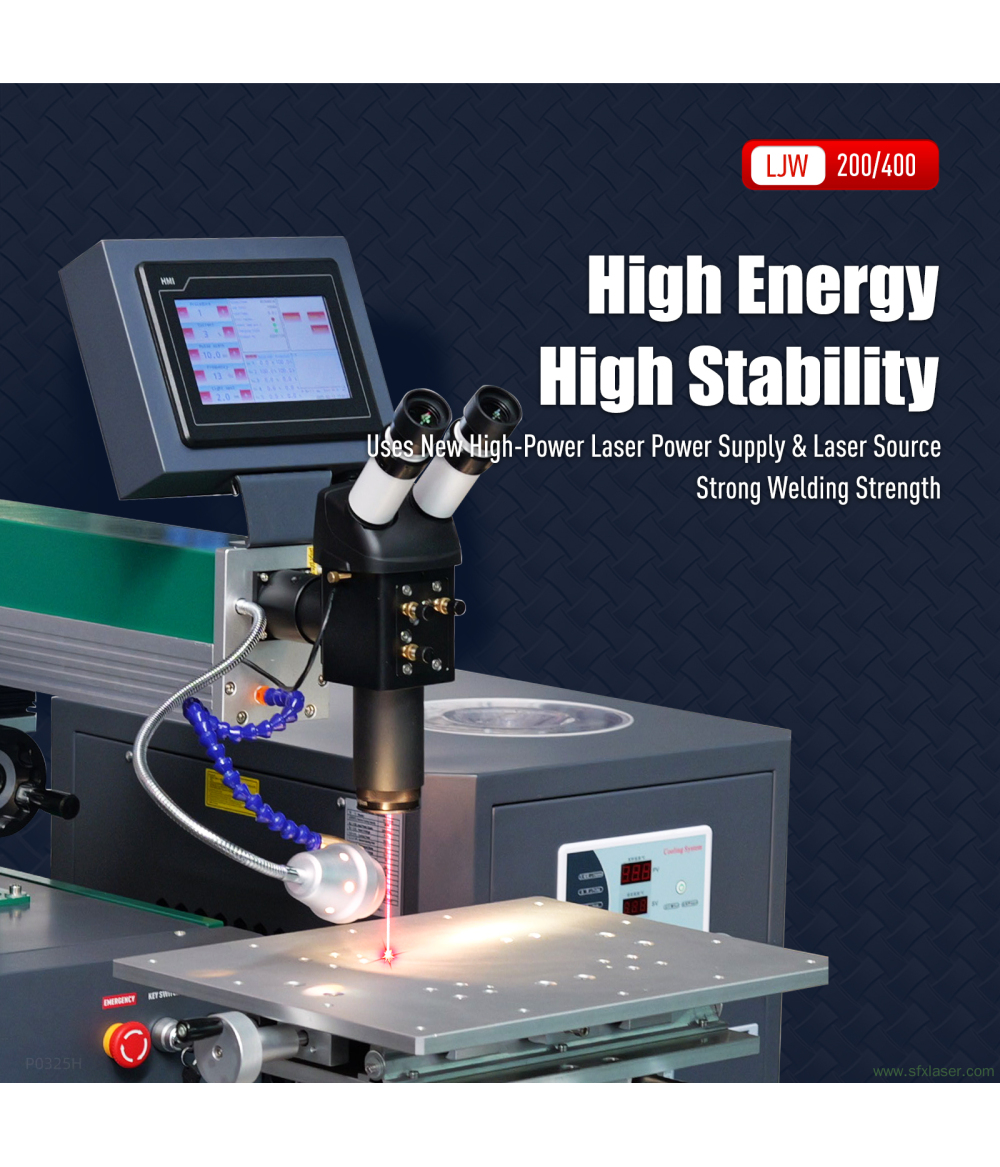

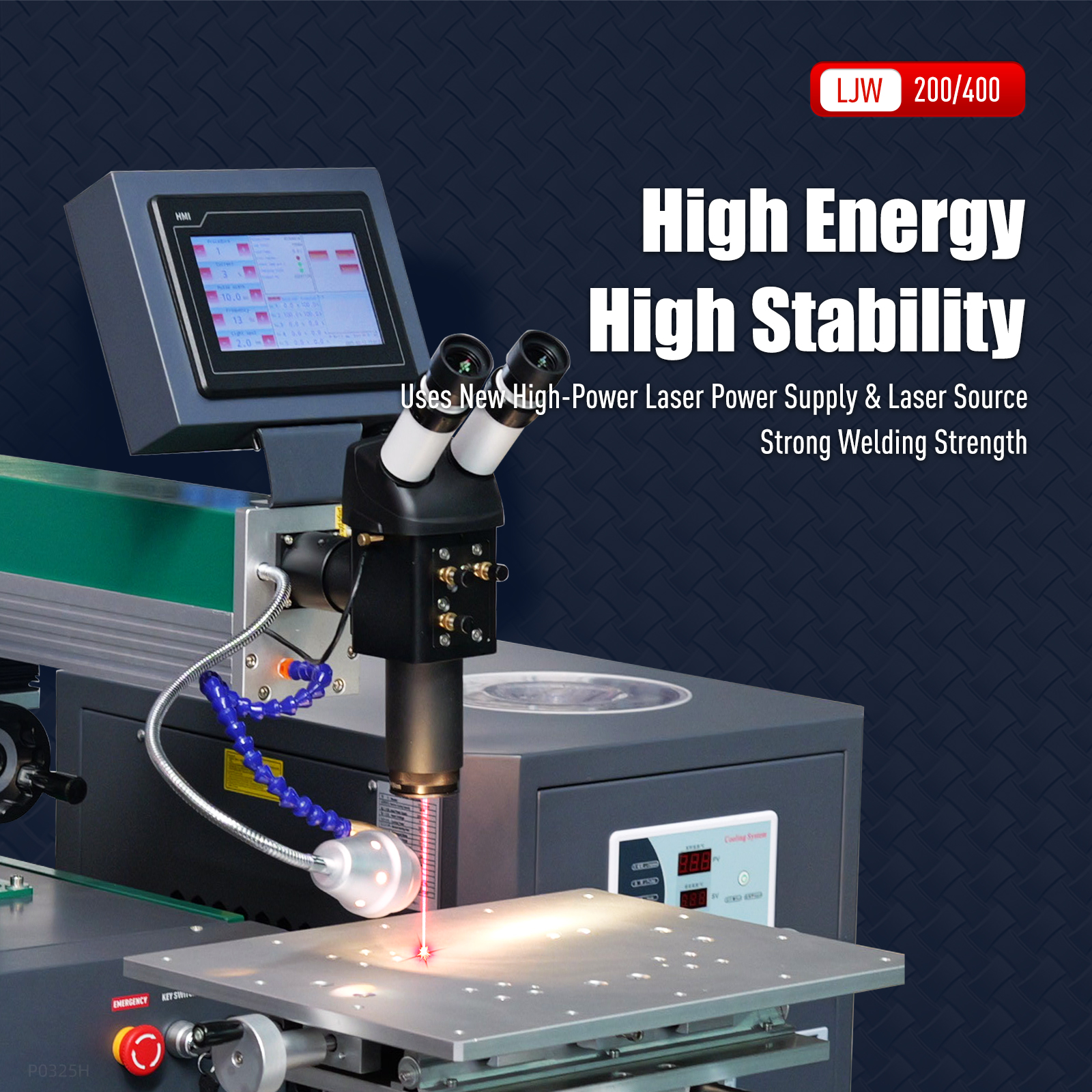

• High Energy and Strong Welding Strength: Utilizes a new high-power laser power supply and laser source, offering robust welding strength for various materials and complex tasks.
• HD Protective Microscope: Equipped with a 10X magnification microscope and high-speed optical filter to protect operators' eyes from strong light fatigue.
• Multi-Functional Worktable: Adjustable in multiple directions, meeting diverse welding needs.

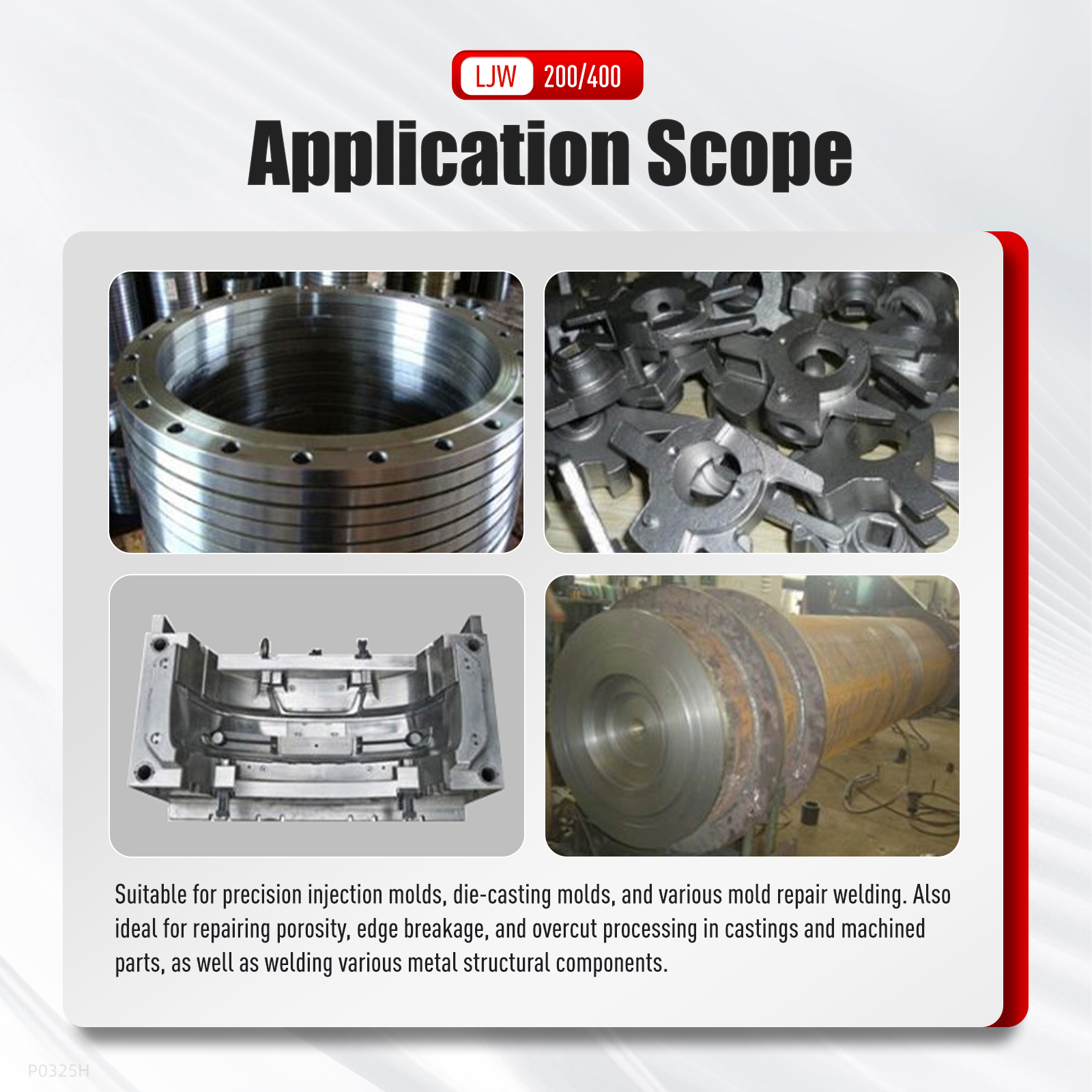

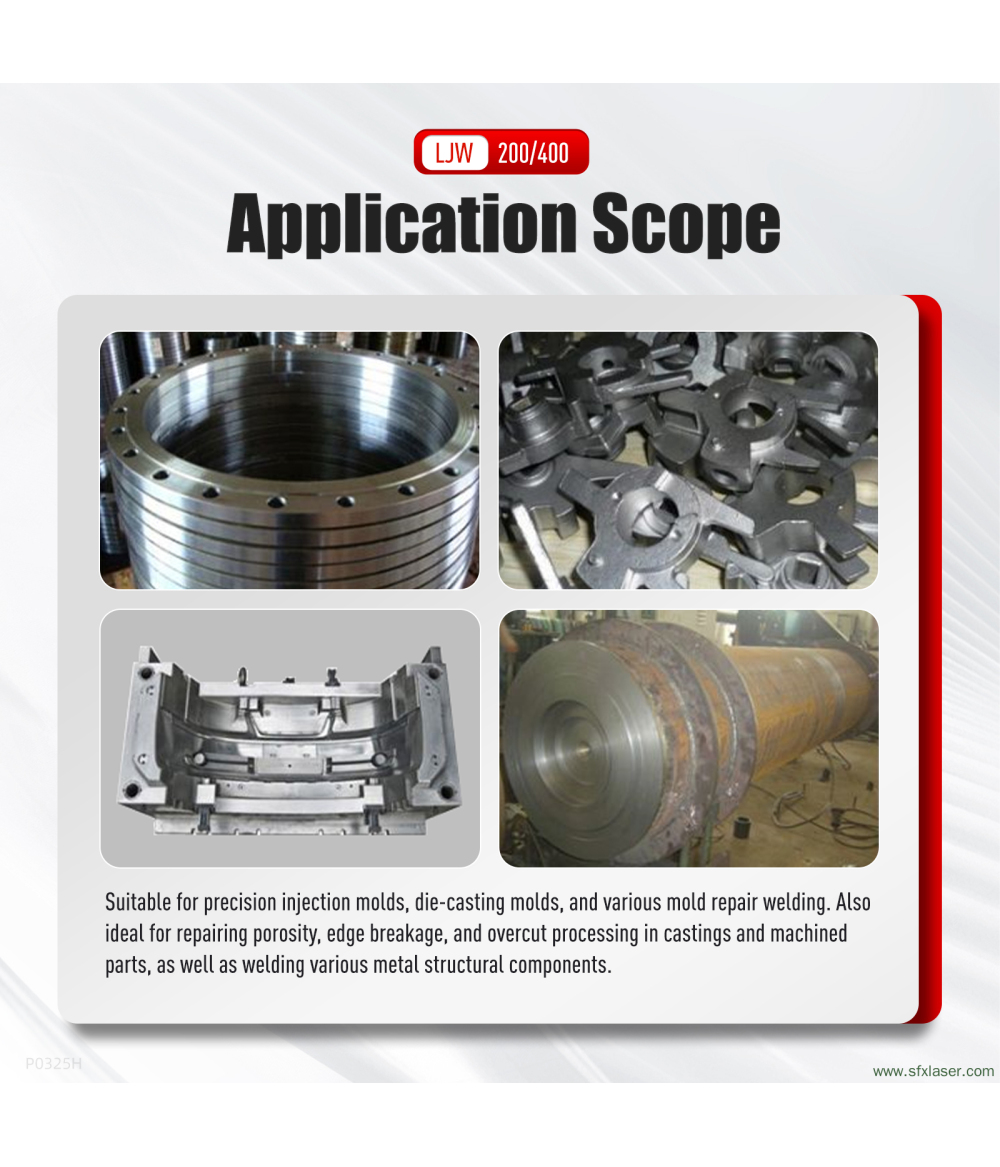

Applications

• Suitable for repairing precision injection molds, die-casting molds, and various other molds.

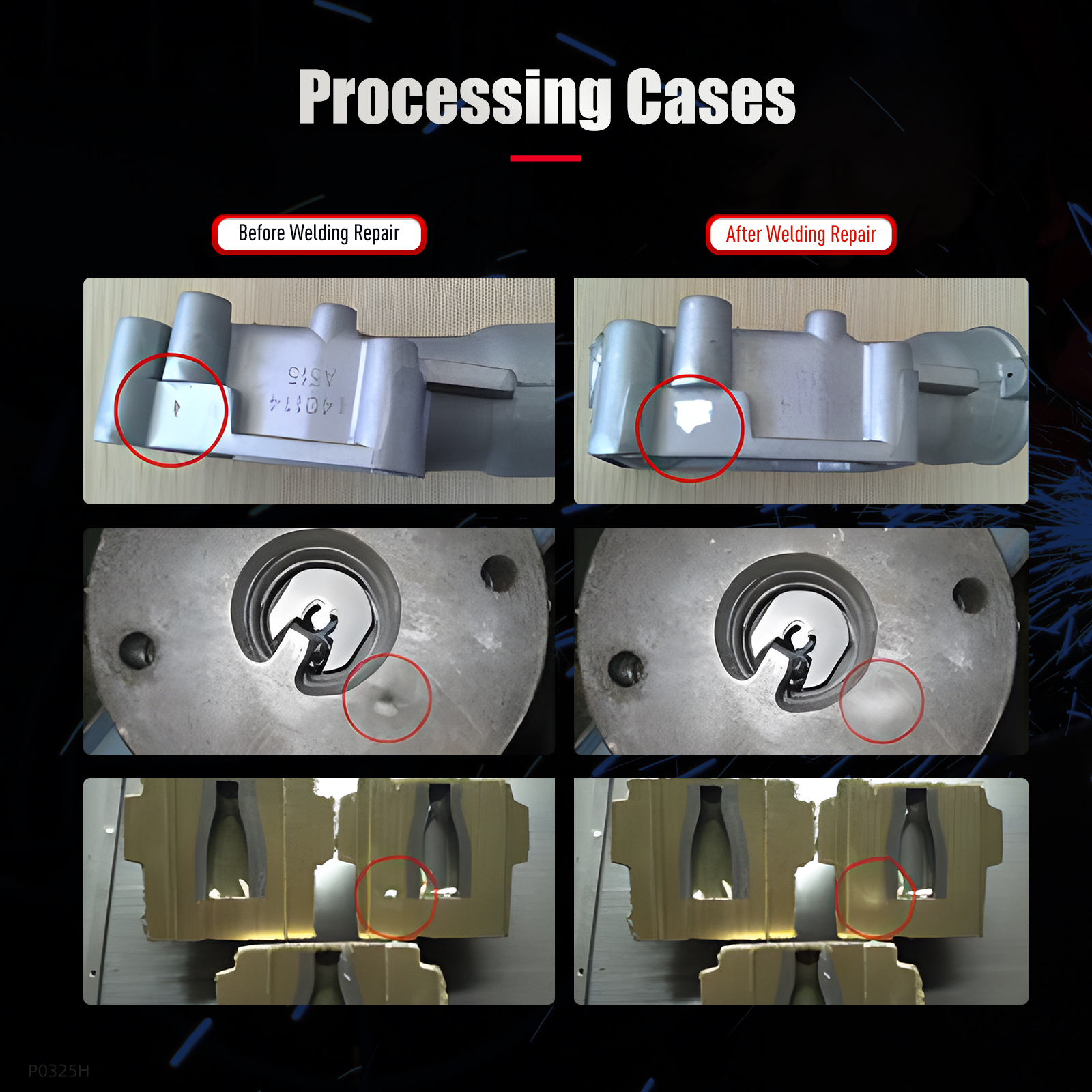

• Ideal for repairing porosity, edge breakage, and overcutting in castings and machined parts.
• Can be used to weld various metal structural components.

Service and Warranty

• Warranty: One-year warranty for the whole machine.
• Technical Support: Lifetime online technical support to assist with any issues.
• Free Shipping: Free shipping service is provided for customers.
• Fast Delivery: Quick delivery to ensure timely arrival of the equipment.
